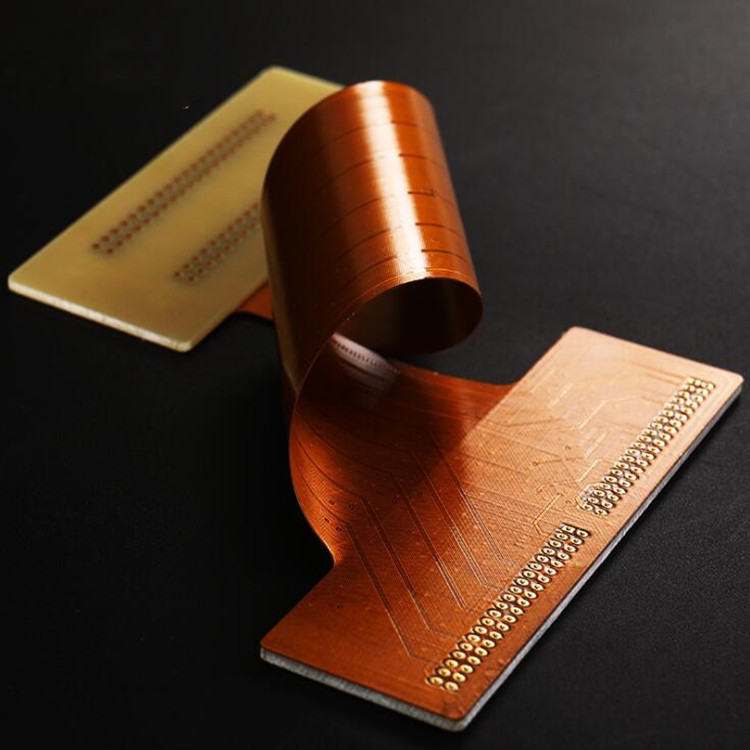

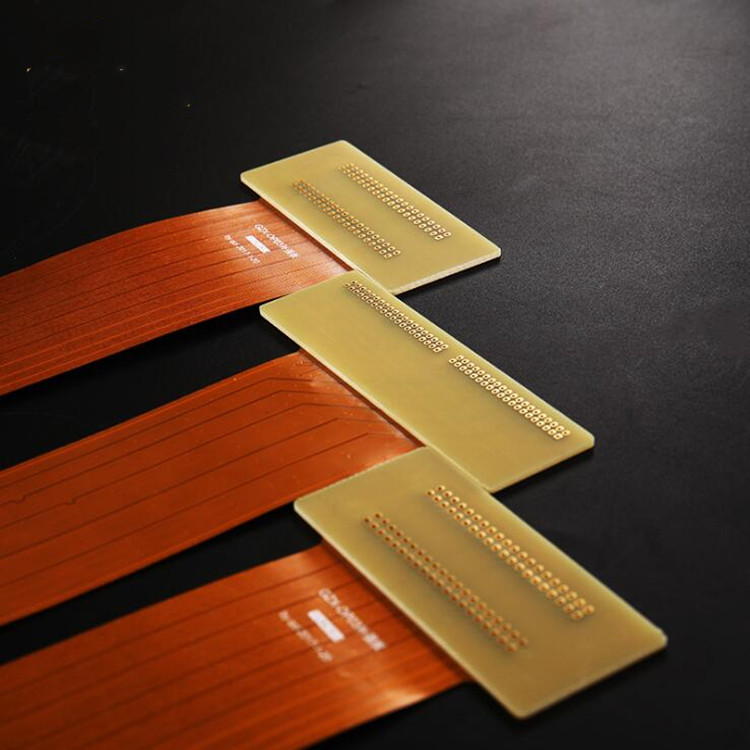

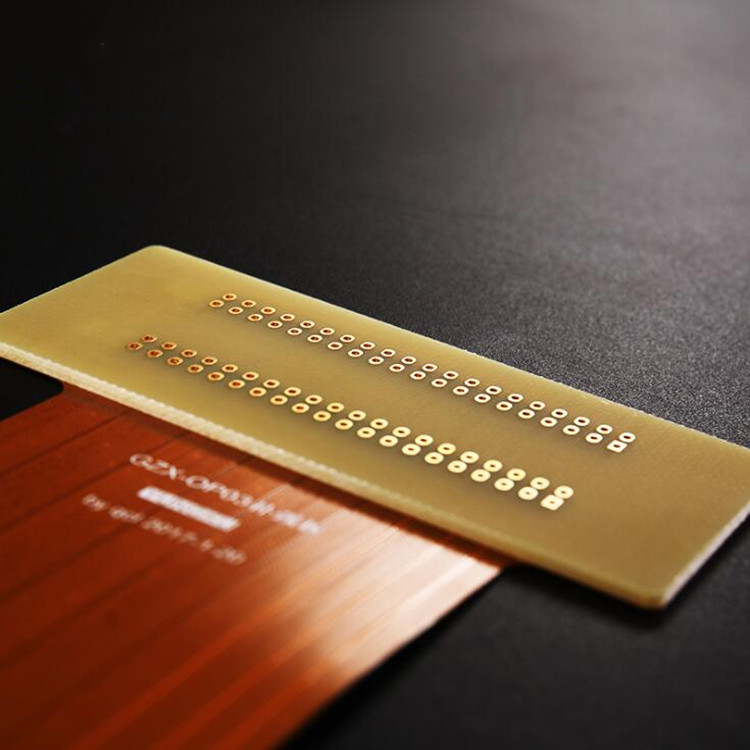

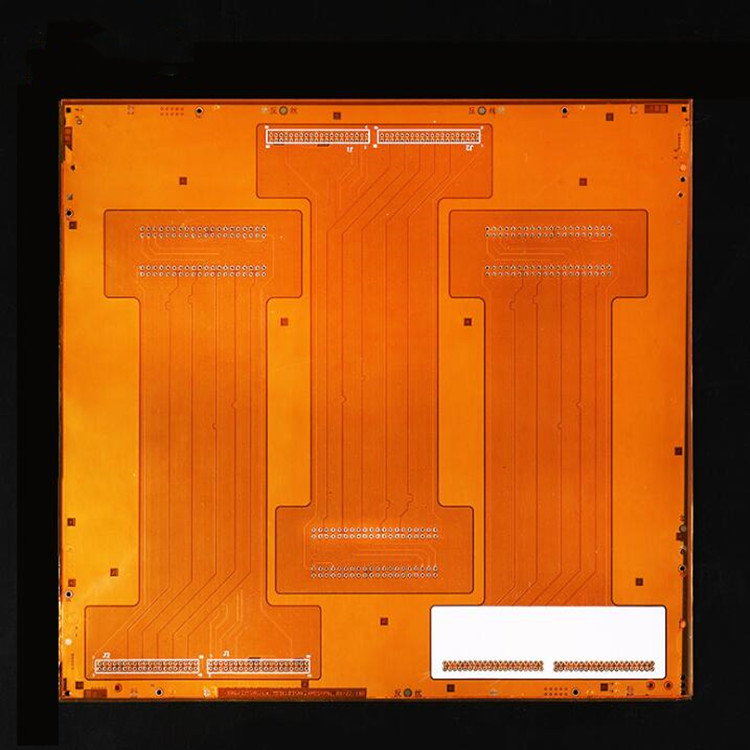

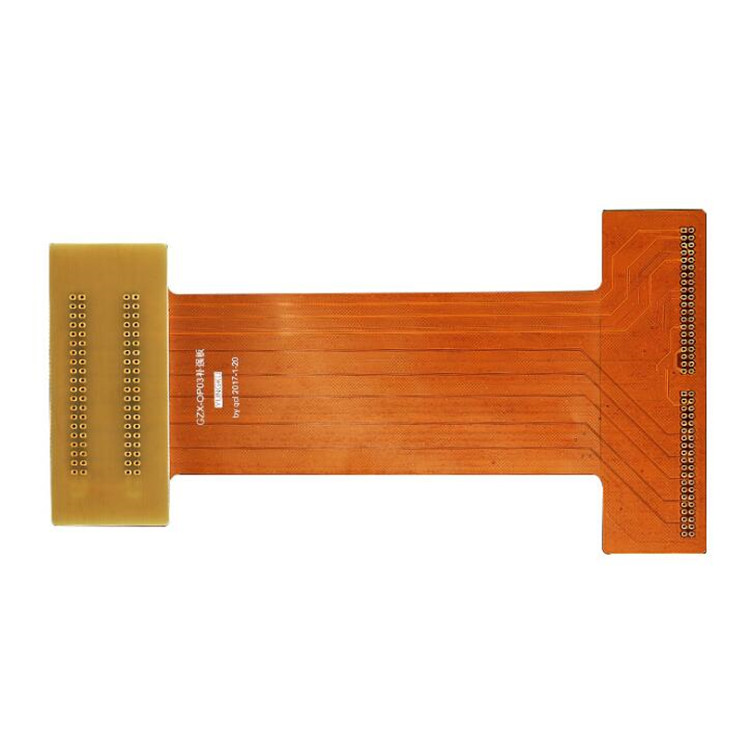

Smart Electronics Multi layer FPCB flexible circuit board, flexible board sampling, mobile phone testing board, adapter board, thin FPC adapter cable

Multi layer FPCB flexible circuit board, flexible board sampling, mobile phone testing board, adapter board, thin FPC adapter cable

Outer copper thickness: 0.5oz,1oz
Reinforcement: steel reinforcement, aluminum reinforcement, PI reinforcement,
FR4 reinforcement, PET reinforcement
Surface treatment: Hard gold plating, OSP
Plate Option: Flame retardant
Base material: FR-4, Polyimide (PI)
Insulation Thickness: Thin Plate
Test Methods: AOI full test + flying probe sampling, 100% flying probe test, AOI full test + flying probe full test, engineering test stand
Soldermask color: yellow
Character color: white
Number of layers: 10
Special process: “carbon oil, gold finger beveled edge, metal half hole, metal wrapped edge
Minimum line width/spacing: 0.125mm,0.1mm
Solder Resist Covering: Over Hole Covering Oil, Over Hole Opening Window
Minimum hole diameter: 0.15mm,0.1mm
Plate thickness: 0.3,1.2mm
shared：

Outer copper thickness: 0.5oz,1oz

Reinforcement: steel reinforcement, aluminum reinforcement, PI reinforcement,

FR4 reinforcement, PET reinforcement

Pad Finish: Hard gold plating, OSP

Plate Option: Flame retardant

Base material: FR-4, Polyimide (PI)

Insulation Thickness: Thin Plate

Test Methods: AOI full test + flying probe sampling, 100% flying probe test,

AOI full test + flying probe full test, engineering test stand

Soldermask color: yellow

Character color: white

Number of layers: 10

Special process: “carbon oil, gold finger beveled edge, metal half hole, metal wrapped edge

Minimum line width/spacing: 0.125mm,0.1mm

Solder Resist Covering: Over Hole Covering Oil, Over Hole Opening Window

Minimum hole diameter: 0.15mm,0.1mm

Plate thickness: 0.3,1.2mm
