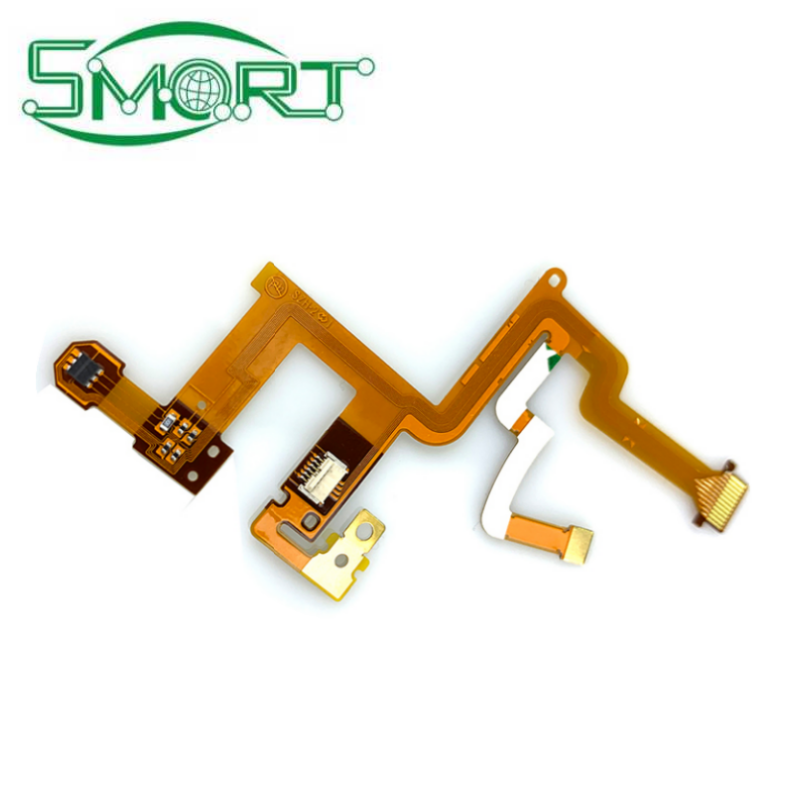

Smart Electronics Professional Oem Fpc Manufacturer Lcd Display Fpc Cable Connector Camera Board Fpc

Professional Oem Fpc Manufacturer Lcd Display Fpc Cable Connector Camera Board Fpc

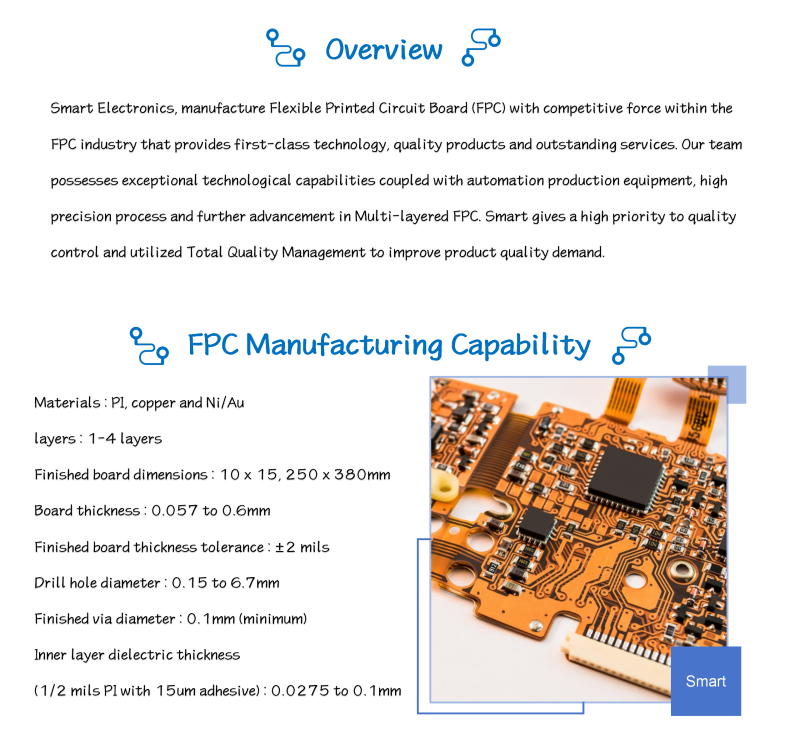

Materials : PI, copper and Ni/Au
Type : FPC
layers : 1-4 layers
Finished board dimensions : 10 x 15, 250 x 380mm
Board thickness : 0.057 to 0.6mm
Finished board thickness tolerance : ±2 mils
Drill hole diameter : 0.15 to 6.7mm
Finished via diameter : 0.1mm (minimum)
Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm
