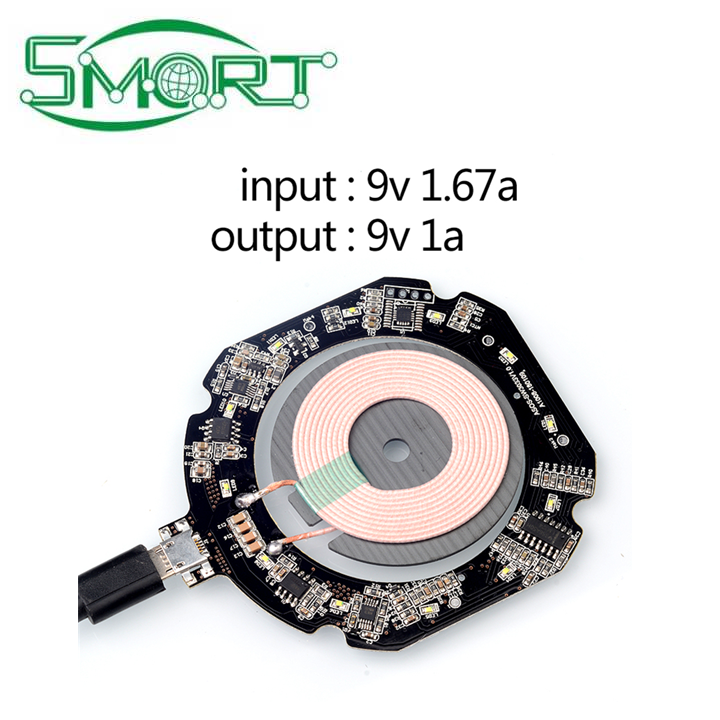

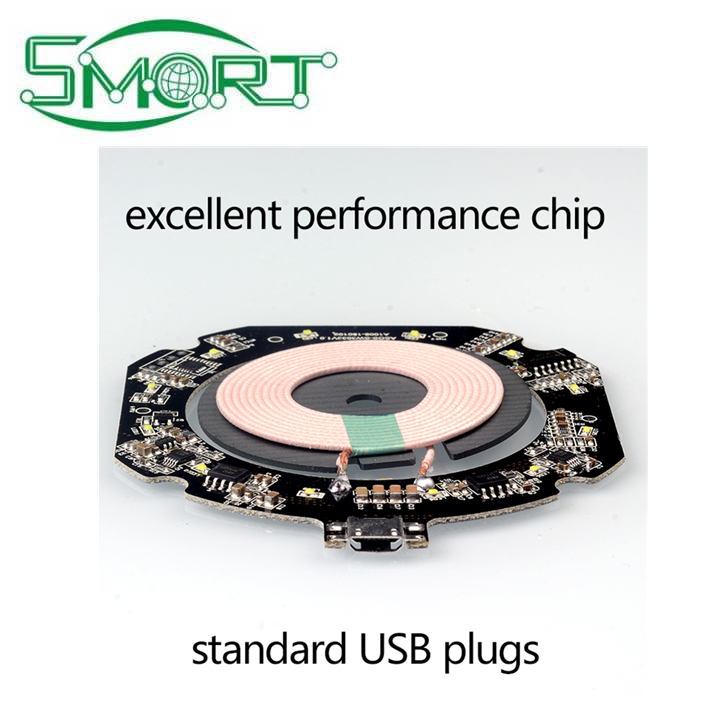

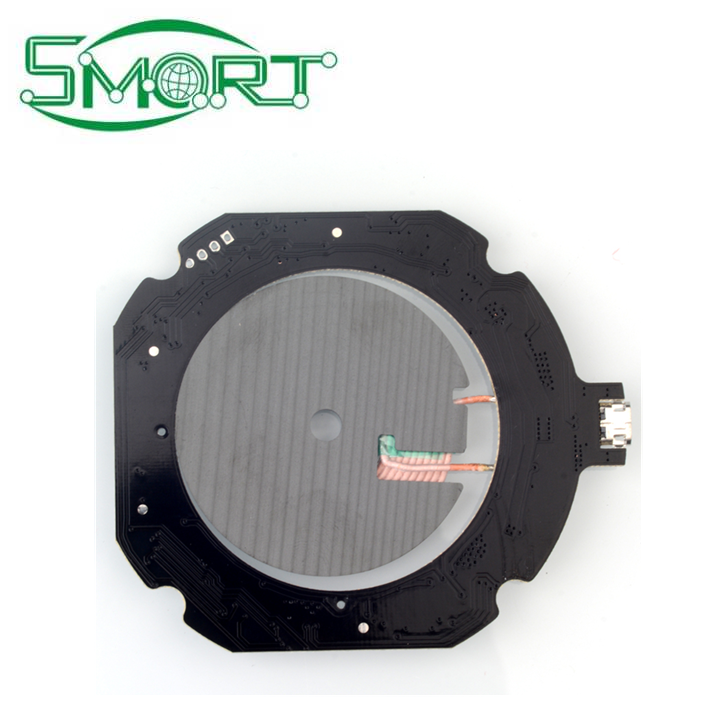

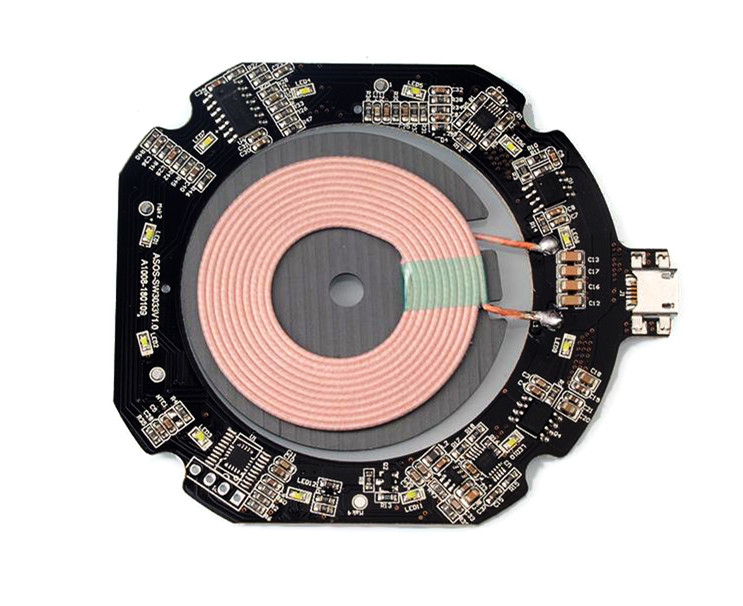

Smart Electronics Wireless Charger 10W 7.5W PCBA Circuit Board Coil Module DIY Charger

Wireless Charger 10W 7.5W PCBA Circuit Board Coil Module DIY Charger

The input voltage: 5V2A output : 5V1A

The input voltage: 5V4A 9V1.67A(qc3.0)

Output : 5V2A 9V1A

Charging current: 1000mAh

Charging power: up to 10W

Wireless conversion efficiency: 73%, boost circuit 90%
shared：


Function parameter description:


1, the input voltage: 5V2A   output : 5V1A

2,  the input voltage: 5V4A 9V1.67A(qc3.0)   output : 5V2A 9V1A

3, charging current: 1000mAh

4, charging power: up to 10W

5, wireless conversion efficiency: 73%, boost circuit 90%

6, transmission distance: maximum 10mm, recommended transceiver spacing 2mm~4mm

7, standby power consumption: the average power consumption is less than 50mW

8, over-temperature protection: When the temperature is higher than 60 degrees when charging,
automatically stop charging for 2 minutes, and then recharge after the temperature drops

9, over-current protection: when the charge and current consumption is greater than 1.8A,
automatically stop charging to prevent damage to the charger

10, the implementation of standards: Qi wireless charging standard

11, product certification: compatible QI certification standards
Provide QI protocol wireless charger PCBA sales, can be nested together to sell,
can help you print LOGO, can open private mode, and can provide you with one-stop
assembly and production services, to help you move toward wireless, intelligent direction!


Name
Phone
Email
Corporate name
Address
Leaving Message*

Verification code
Submit

Smart Electronics TDA7293/TDA7294 Mono Channel Amplifier Module Circuit PCB Bare Board 4XFB

TDA7293/TDA7294 Mono Channel Amplifier Module Circuit PCB Bare Board 4XFB Model: TDA7293/TDA7294 Power supply: double AC 15V to 36V (AC needs rectification and filtering) or DC positive and negative 18V to 50V.Recommended double 35V (Note that it is not a dual 35V transformer, it is positive and negative 35V DC. And It is recommended to double 26V/200W toroidal transformer, after rectification voltage is about DC double 35V).

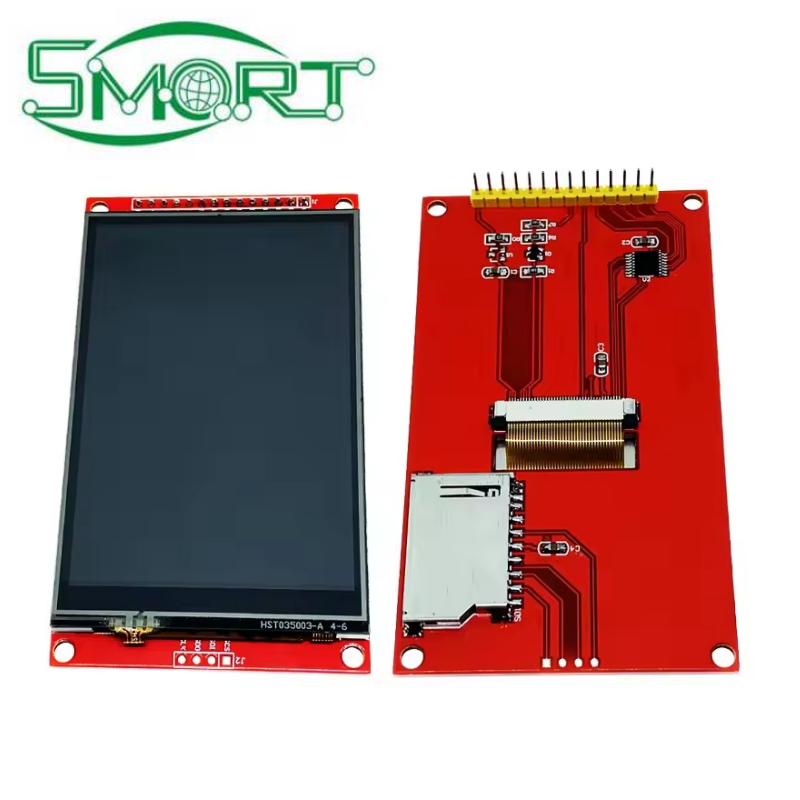

Smart Electronics 3.5-inch TFT LCD display screen module serial port SPI driver ILI9488 with capacitive touch RGB 320 * 480
