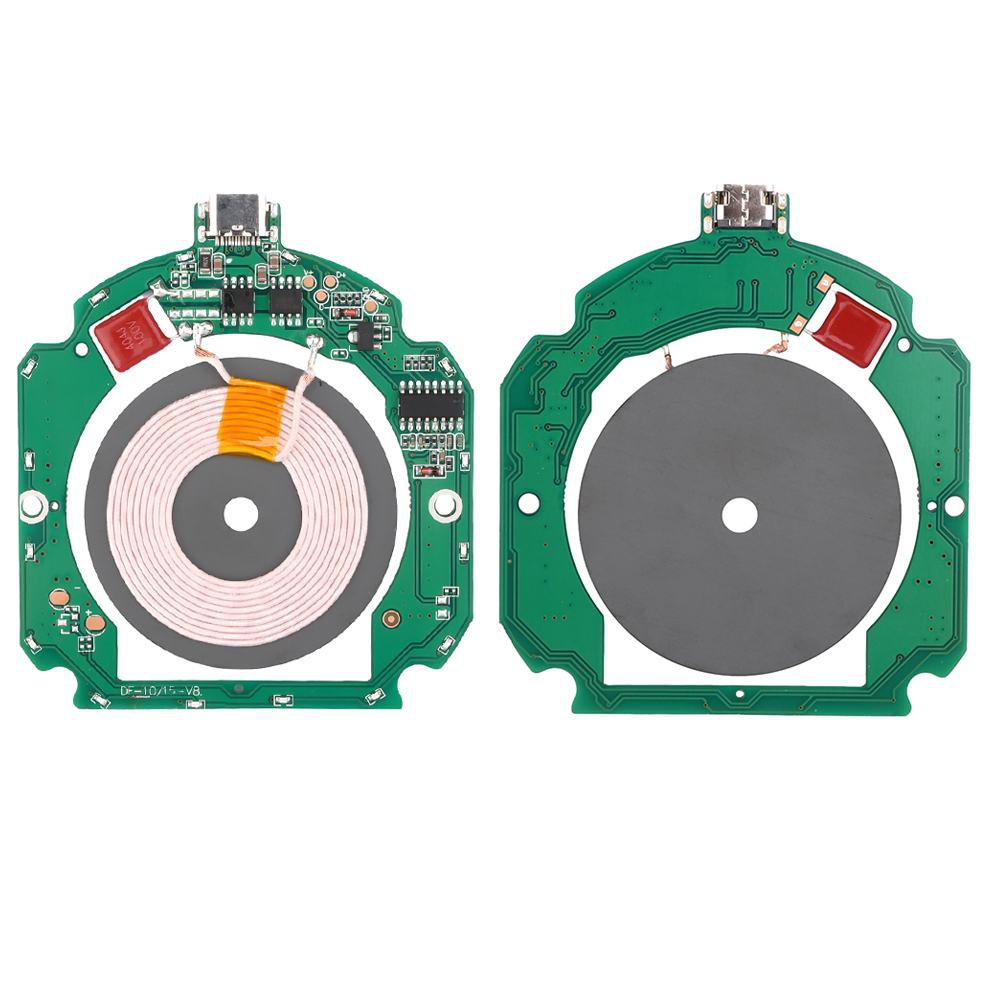

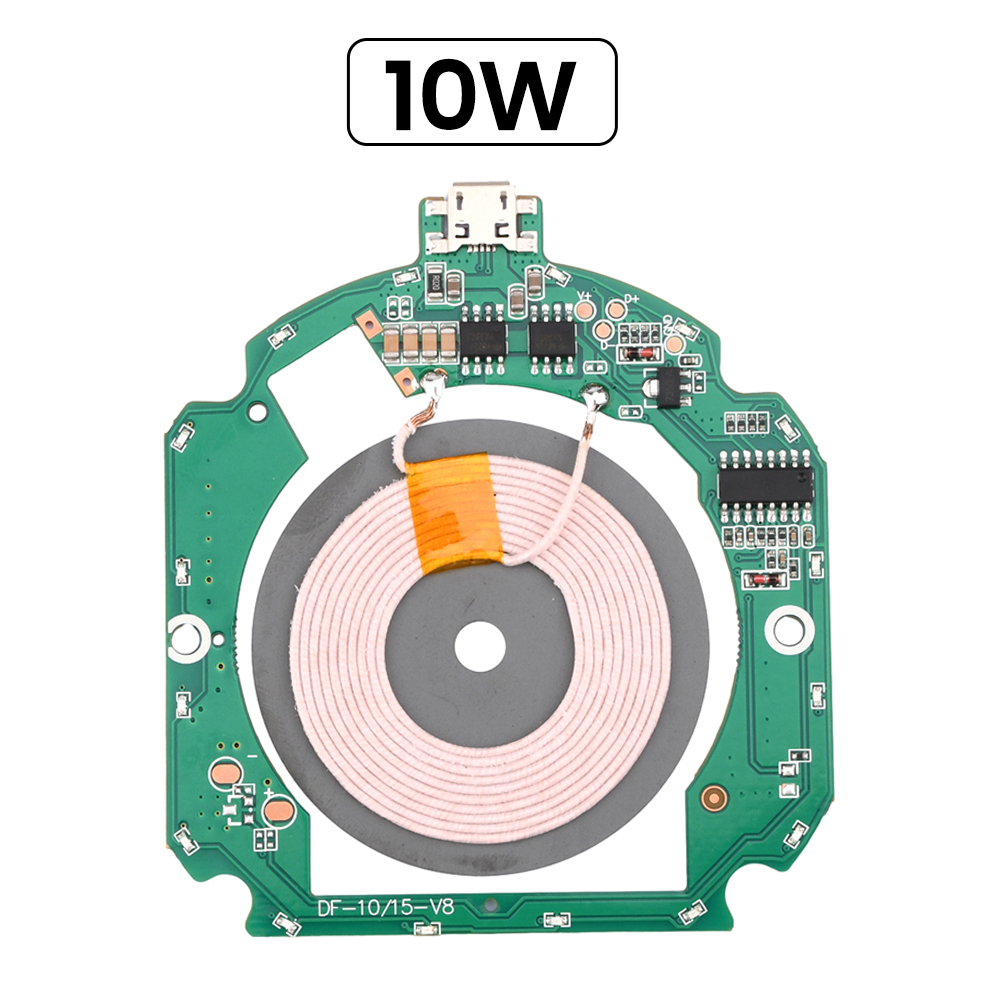

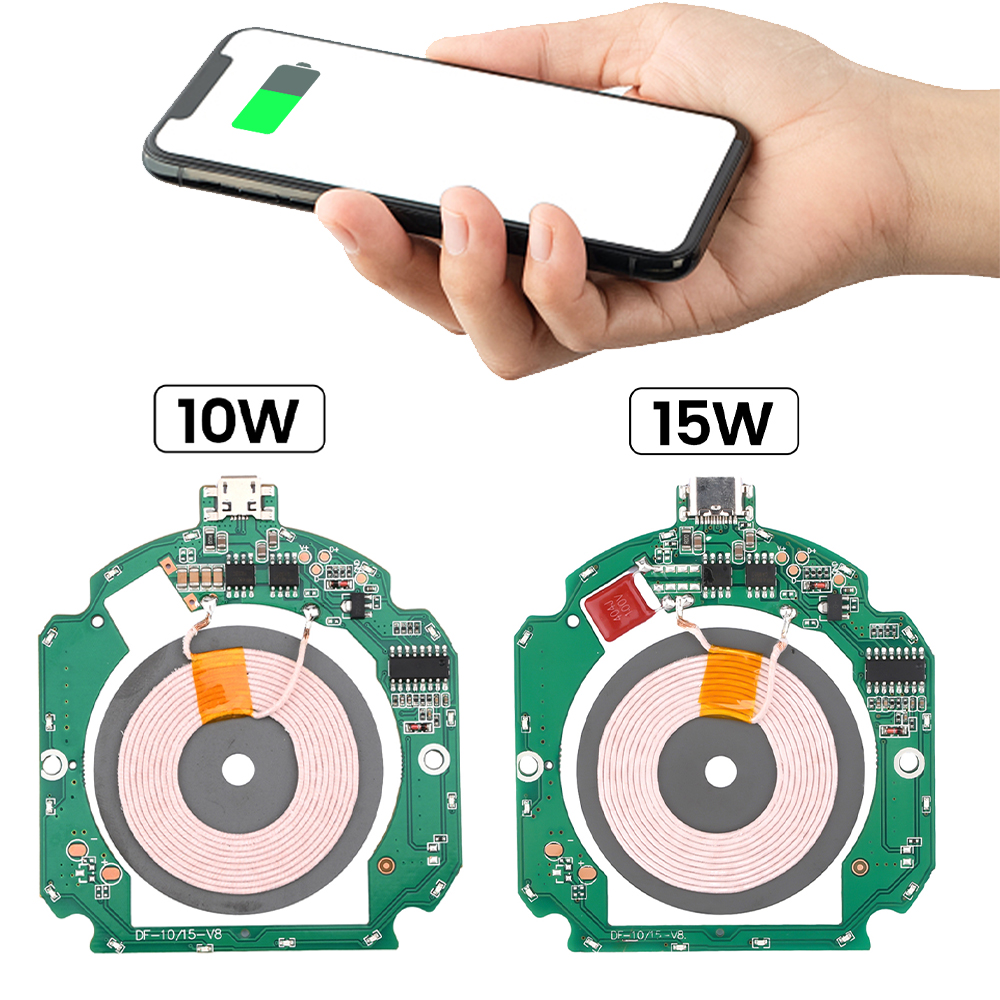

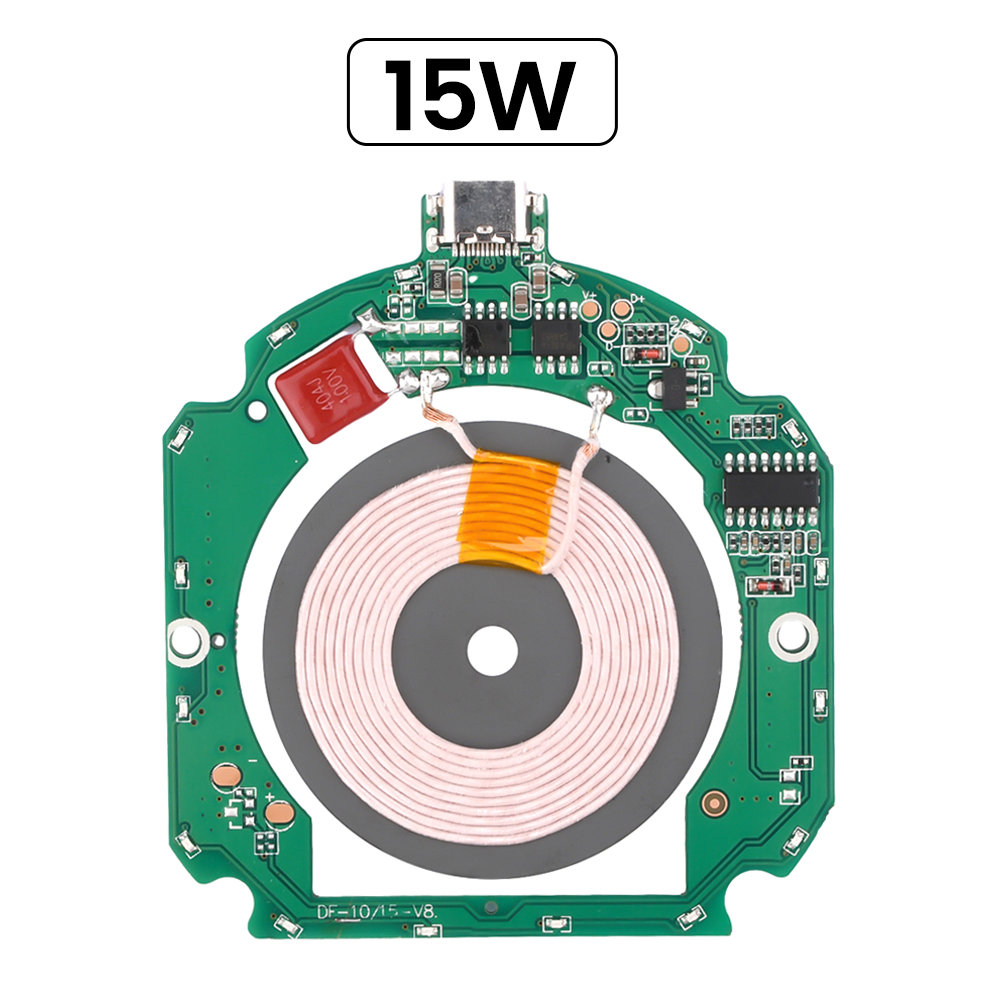

Smart Eletronic 15W wireless charger transmission module 10W car mounted mobile phone isolated wireless charging pcba circuit board

Products > Wireless Charging Module > Smart Eletronic 15W wireless charger transmission module 10W car mounted mobile phone isolated wireless charging pcba circuit board
    • 1
    • 2
    • 3
    • 4
    • 5

Smart Eletronic 15W wireless charger transmission module 10W car mounted mobile phone isolated wireless charging pcba circuit board

15W wireless charger transmission module 10W car mounted mobile phone isolated wireless charging pcba circuit board
shared：

Feature1. Use high-quality materials with guaranteed product quality

2. Small size, high power, high efficiency, and complete protocols

3. Equipped with quadruple protection functions such as overcurrent, overvoltage, overheating,

short circuit, etc

4. Wireless charger suitable for smartphones, wearable applications, and compliant with WPC

standards

5. The product has a wide range of applications and is suitable for various industrial DIY situations

Parameter

Type-c interface

Complies with WPC V1.2.3 wireless charging specifications Product standard: QI Built in MCU, 12 bit high-precision ADC, communication decoding Input voltage/current: 5V3A, 9V-1.67A, 12V-1.5A Output current: 5V-1A, 9V-1.66 Supports maximum 15W power output Efficiency reaches 75% -85% Sensing distance: 0-8mm Working frequency: 100-200Khz Support dynamic energy balance Intelligent recognition, 5W/75W, 10W/15W charging

Equipped with quadruple protection functions such as overcurrent, overvoltage, overheating,

and short circuit

Support for double foreign object detection (FOD)

Package list: Wireless charging module * 1
