Smart Electronic Compass Module Triple Axis Magnetometer Sensor GY-271 Magnetic Field sensor HMC5883L

Compass Module Triple Axis Magnetometer Sensor GY-271 Magnetic Field sensor HMC5883L

shared：

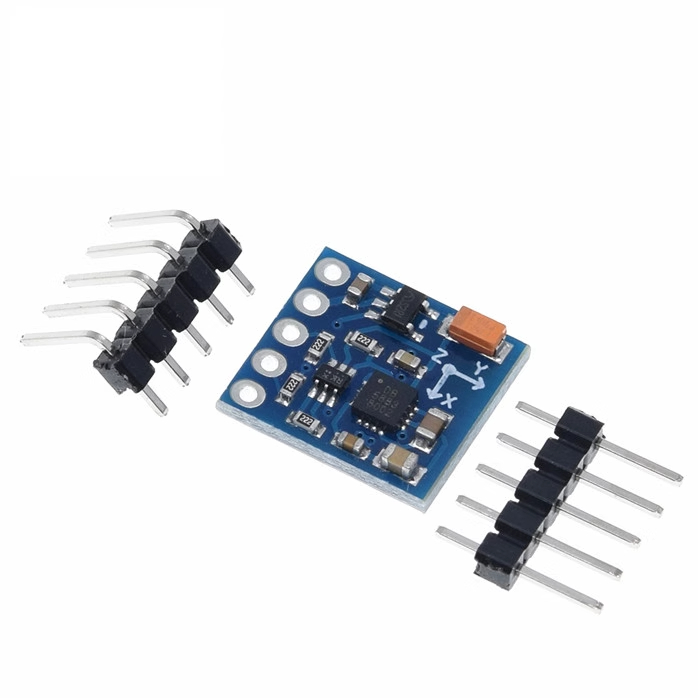

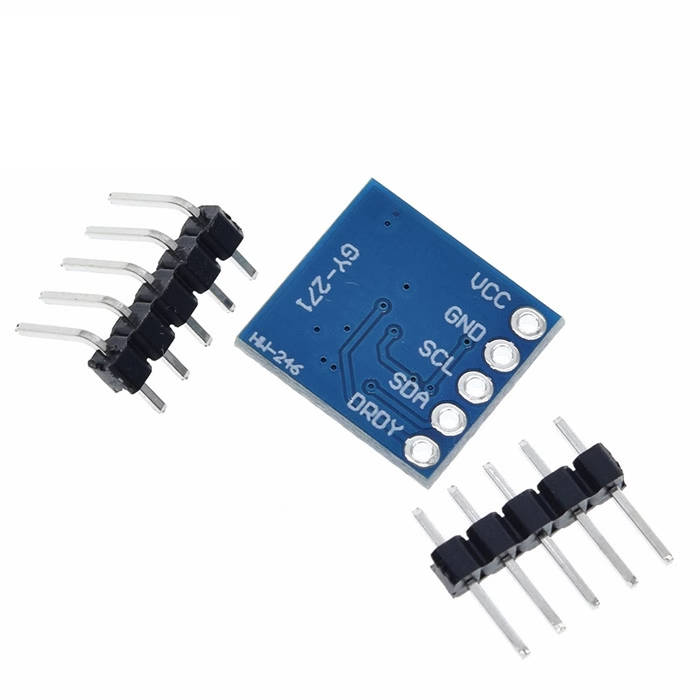

GY-271 HMC5883L Compass Sensor Triple Axis

Magnetometer Magnetic Field Sensor

Features

Weight：8g
Gold plating PCB, applying machine welding technology, superb technique and reliably quality guarantee
Name: HMC5883L Module (Triaxial Magnetic Field Module)
Type: GY-271
Chip: HMC5883L
Power Supply: 3~5V
Communication Mode: Standard IIC communicating protocol
Measuring Range: ±1.3-8 Gauss.

Description:
1. HMC5883L is a kind of SMT High integration module that has a weakly magnetic sensor chip with a digital interface.
2. It is widely used in the testing of the low-cost compass and magnetic field.3. HMC5883L contains the latest high-resolution HMC118X series sensor and integrated circuit including amplifier,
automatic demagnetization driver, deviation calibration and 12-bit A/D converter that can keep the precision of compass ranging
within 1°~2°. What’s more, it has simply equipped I2C series bus interfaces.

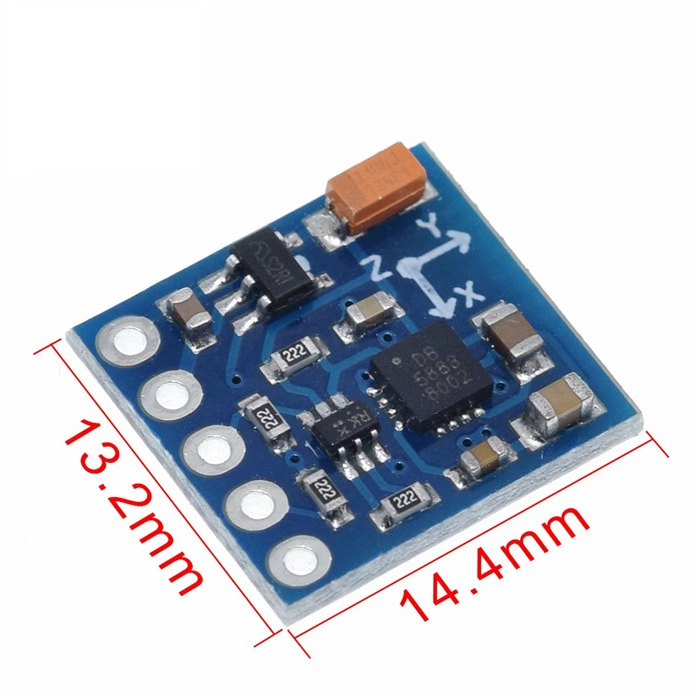

4. HMC5883L applies lead-free SMT (surface mounting technology) and it has 16 pins with a size of 3.0 x 3.0 x 0.9mm.
5. HMC5883L is applied in a wide field: smart phone, laptop, electronic product, car navigation system and personal navigation system.

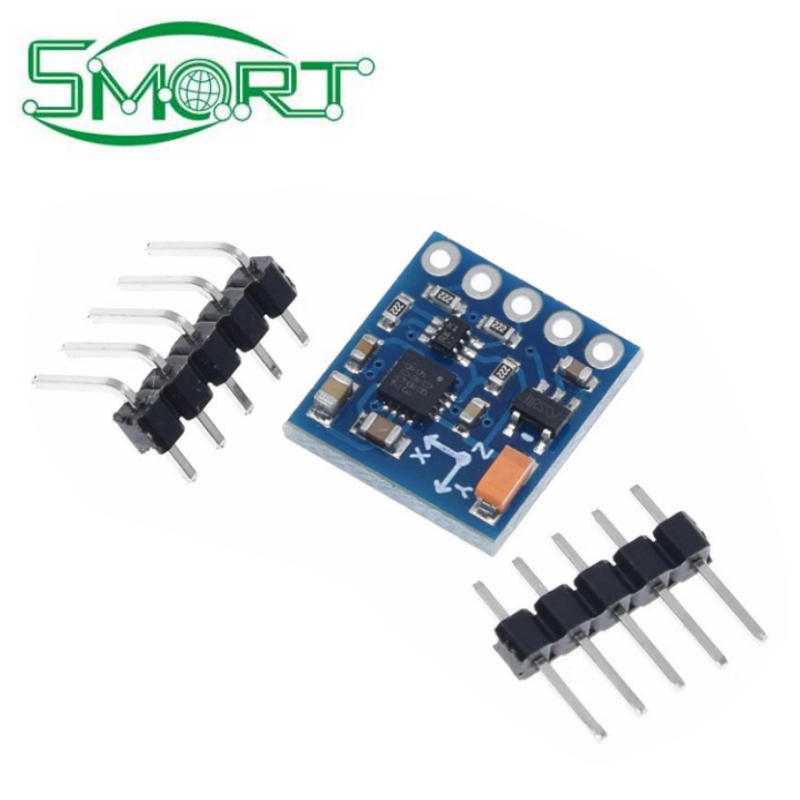

Package List:1 * GY-271 HMC5883L 3-Axis Magnetic Electronic Compass Module
