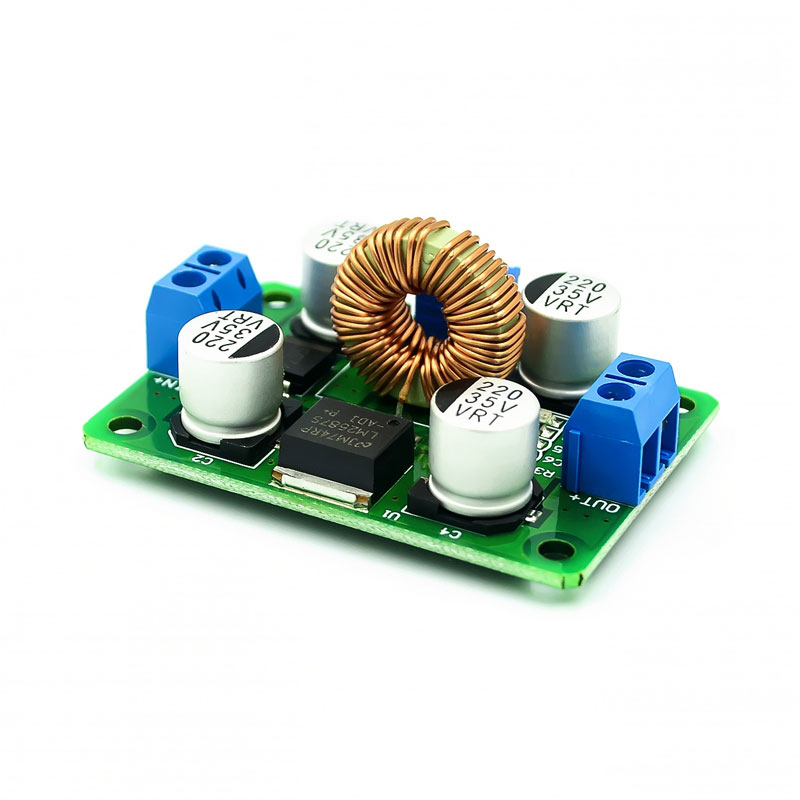

DC 30W adjustable booster module LM2587 outperforms the lm2577 in power 5A

shared：
Series
LM2587
Features
3V 5V 12V to 19V 24V 30V 36V

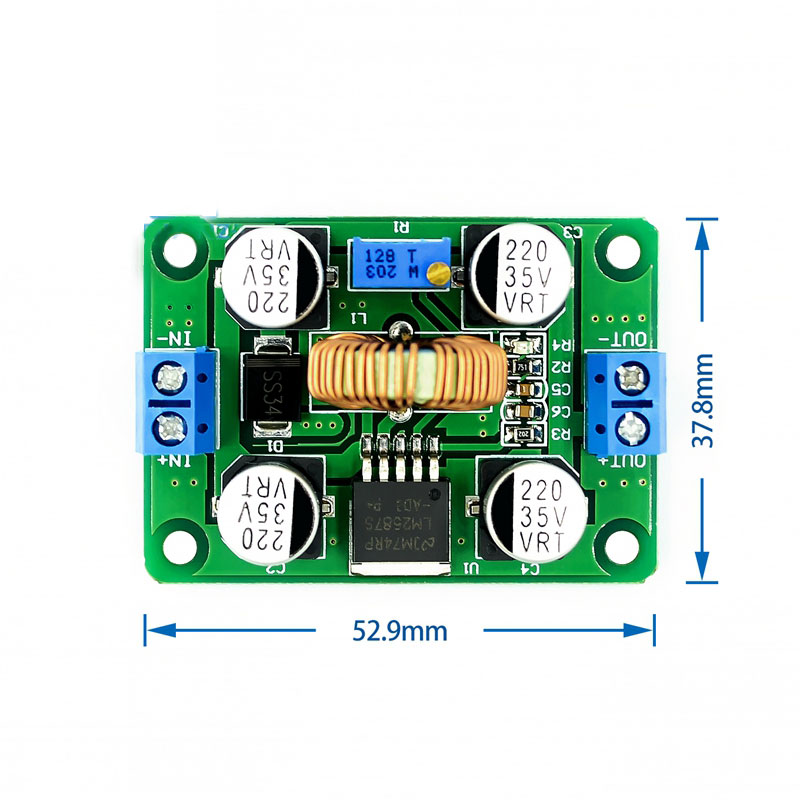

Size / Dimension
52.9*37.8mm
Weight
26g
Input voltage range
3.5V-30V
Output voltage range
4.0-30V
Input current
5A
Continuous working current
3A
Input voltage range: 3.5V-30V (it must be ensured that the output set voltage is higher than the input voltage)
Output voltage range: 4.0-30V
Input current: 5A (Calculate the output current Uin * Lin meter efficiency=Uout * lout under rated conditions based on power conservation)
Continuous working current: 3A (with good ventilation and heat dissipation conditions, the ratio of output voltage to input voltage cannot exceed 3)
Note:

When you test if the output voltage is not higher than the input voltage, please adjust the

potentiometer clockwise, the output voltage will increase, please do not adjust counterclockwise,

so that the module will be damaged or even destroyed in the case of high input voltage.
