Smart Electronics TTGO T-Display ESP32 WiFi And Ble Module Development Board

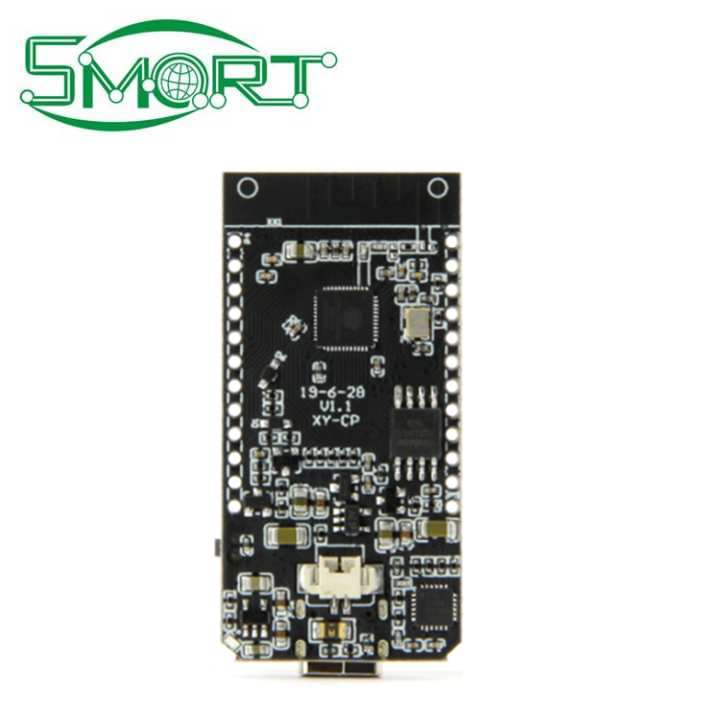

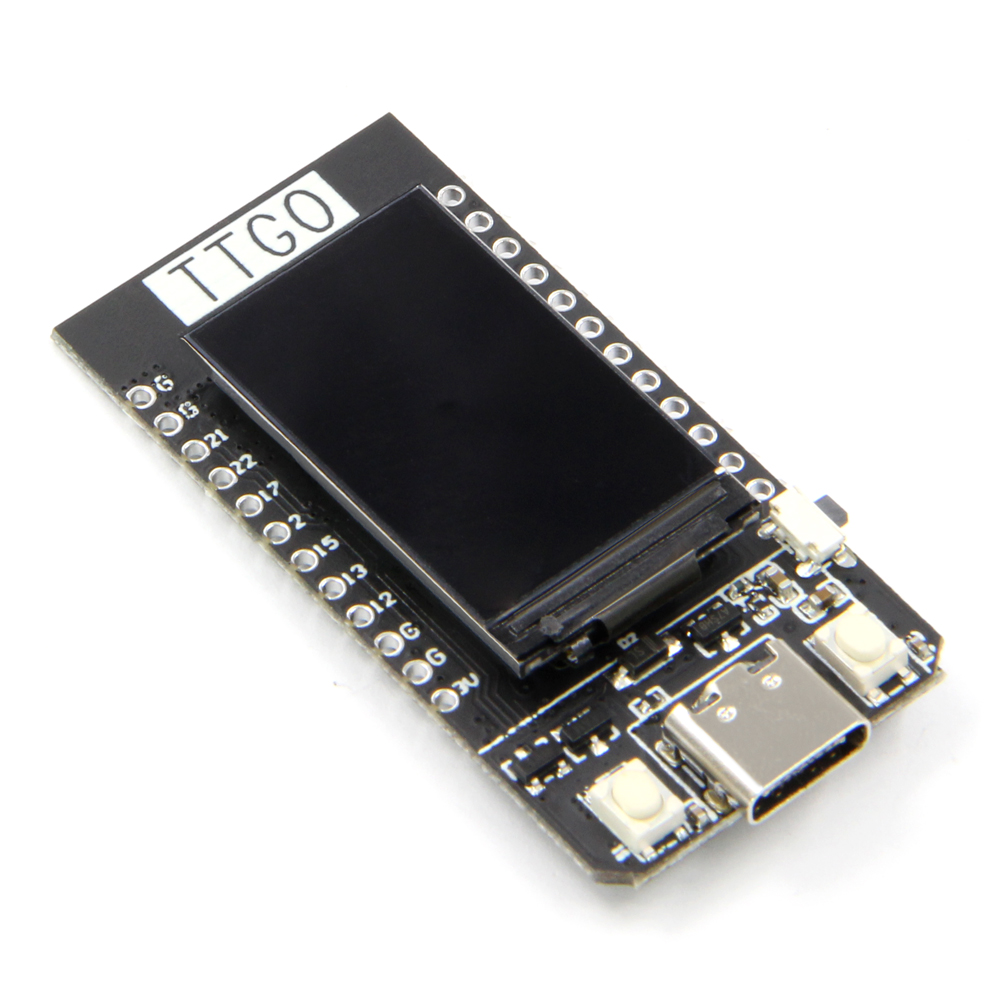

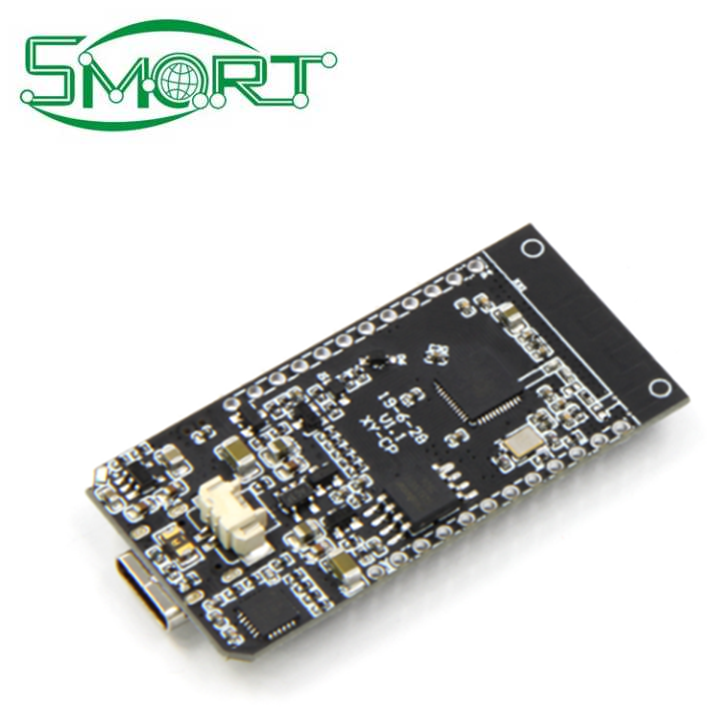

TTGO T-Display ESP32 WiFi And Ble Module Development Board

Chipset： ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH： QSPI flash 4MB
SRAM： 520 kB SRAM
Button： Reset
USB to TTL： CP2104
Modular interface： UART,SPI,SDIO,I2C,LED PWM,TV PWM,I2S,IRGPIO,ADC,capacitor touch sensor,DACLNA pre-amplifier
shared：

Specifications
ChipsetESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASHQSPI flash 4MB
SRAM 520 kB SRAM
ButtonReset
USB to TTLCP2104
Modular interfaceUART,SPI,SDIO,I2C,LED PWM,TV PWM,I2S,IRGPIO,ADC,capacitor touch sensor,DACLNA  pre-amplifier
DisplayIPS ST7789V 1.14 Inch
Working voltage2.7V-4.2V
Working currentAbout 67MA
Sleep currentAbout 350uA
Working temperature range-40℃ ~ +85℃

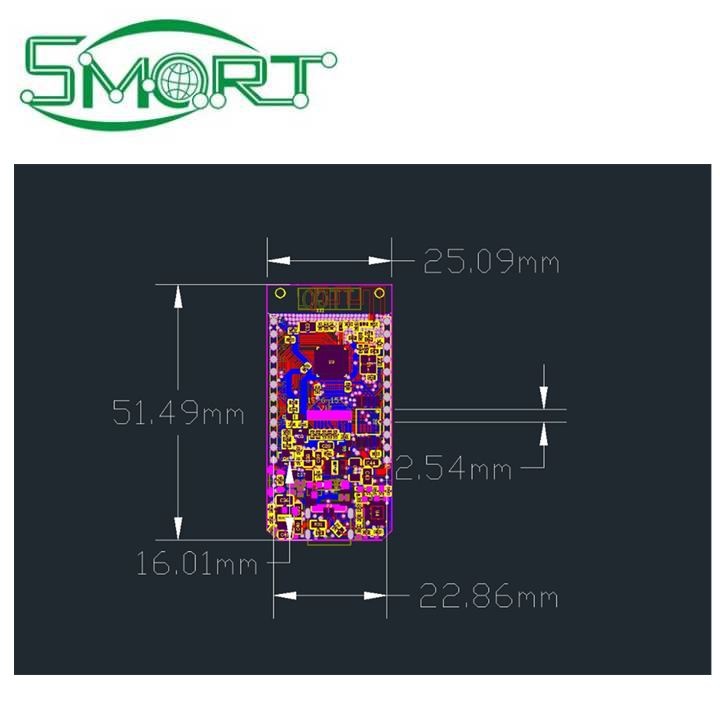

Size&Weight51.52*25.04*8.54mm(7.81g)
Power Supply Specifications
Power SupplyUSB 5V/1A
Charging current500mA
Battery3.7V lithium battery
JST Connector2Pin 1.25mm
USBType-C



Wi-Fi


StandardFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
Communication distance300m



Ble


ProtocolMeet ble v4.2BR/EDR and BLE standard
Radio frequencyWith -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequencyCVSD&SBC audio frequency



Software specification


Wi-Fi ModeStation/SoftAP/SoftAP+Station/P2P
Security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
Networking protocolIPv4,IPv6,SSL,TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS
