Smart Electronics W1209 LED Digital Thermostat Temperature Control Thermometer Thermo Controller Switch Module DC 12V Waterproof NTC Sensor

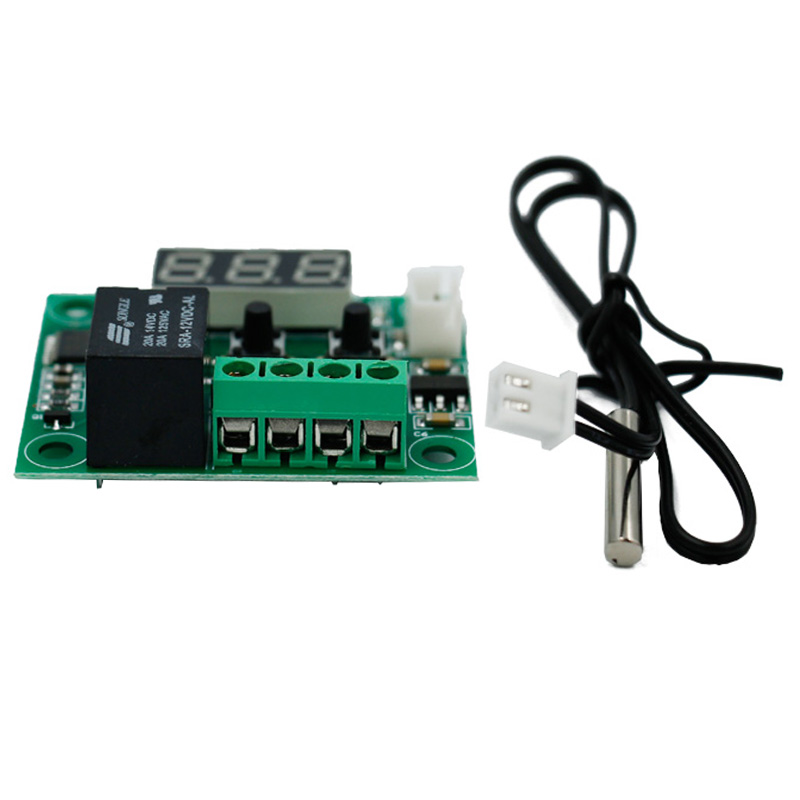

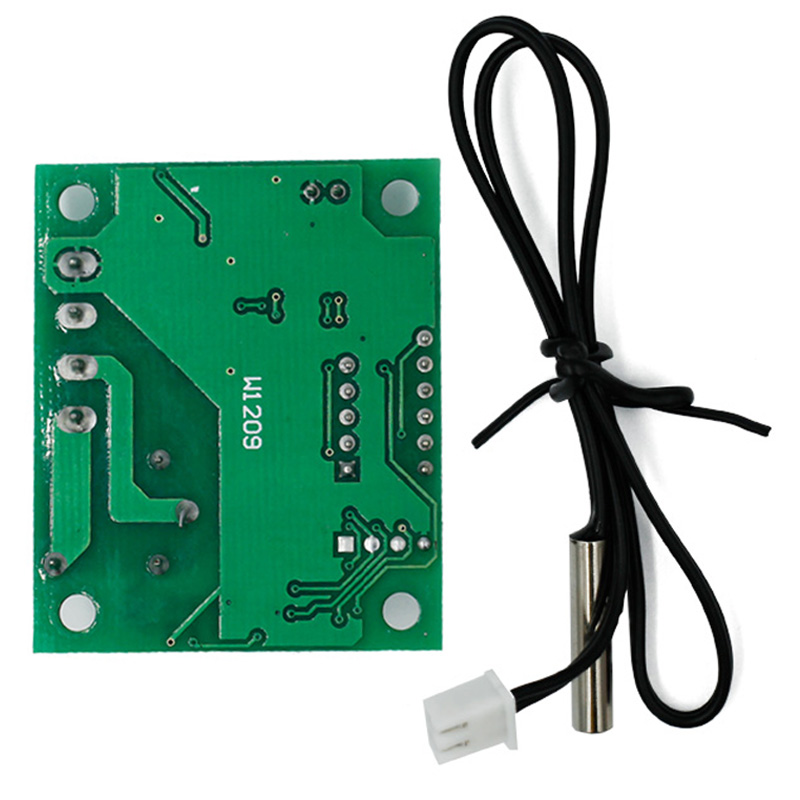

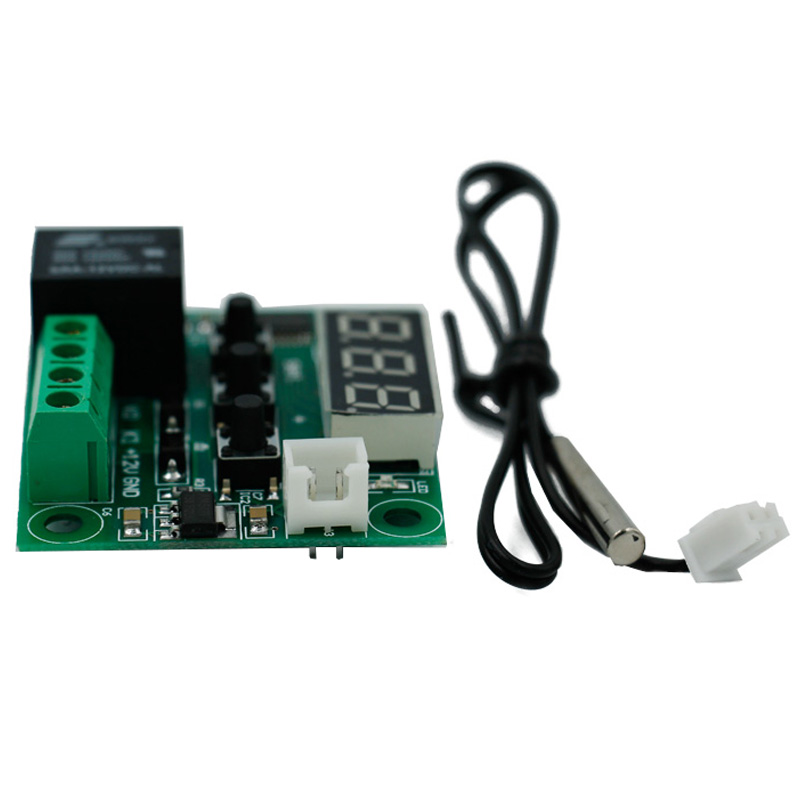

W1209 LED Digital Thermostat Temperature Control Thermometer Thermo Controller Switch Module DC 12V Waterproof NTC Sensor

Temperature range :-50-110 °
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution:When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
Control accuracy: 0.1 °
Hysteresis accuracy: 0.1°
Refresh rate: 0.5S
High temperature protection: 0-110°
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 20A relay
shared：

Features:


Temperature range :-50-110 °
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution:When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
Control accuracy: 0.1 °
Hysteresis accuracy: 0.1°
Refresh rate: 0.5S
High temperature protection: 0-110°
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor

Environmental requirements: -10 ~ 60 ° ,Humidity 20% -85%

How to use:

Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?
HH is out of range, the thermostat will be forced to close the relay,
the display --- as high temperature protection.
