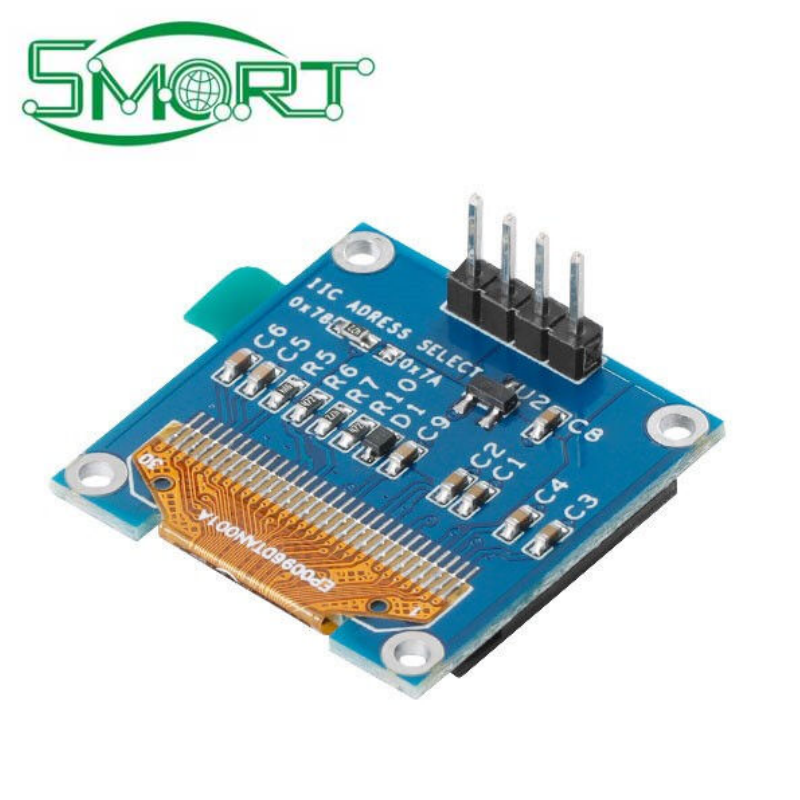

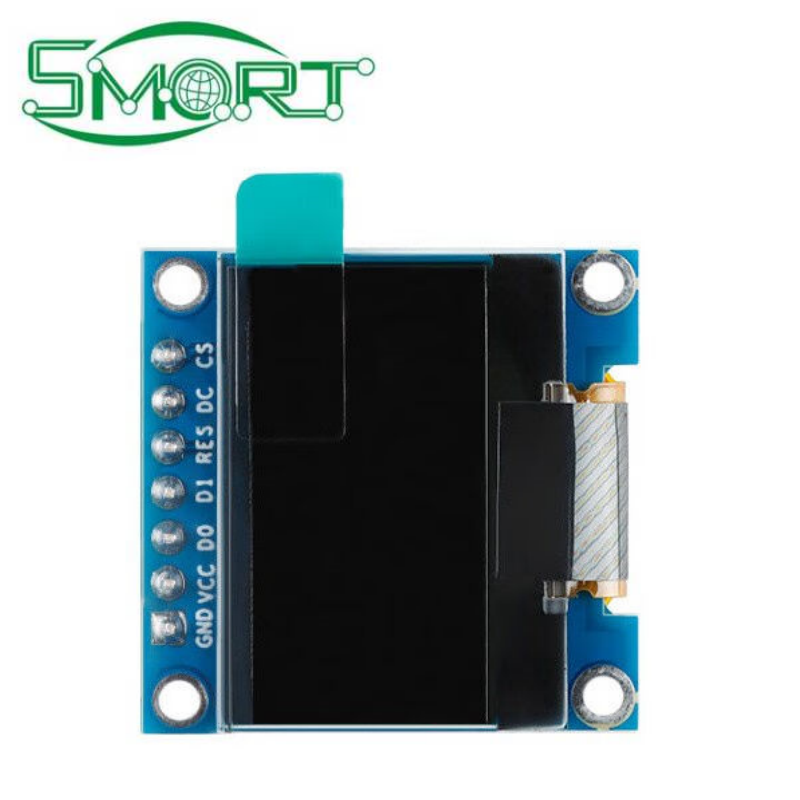

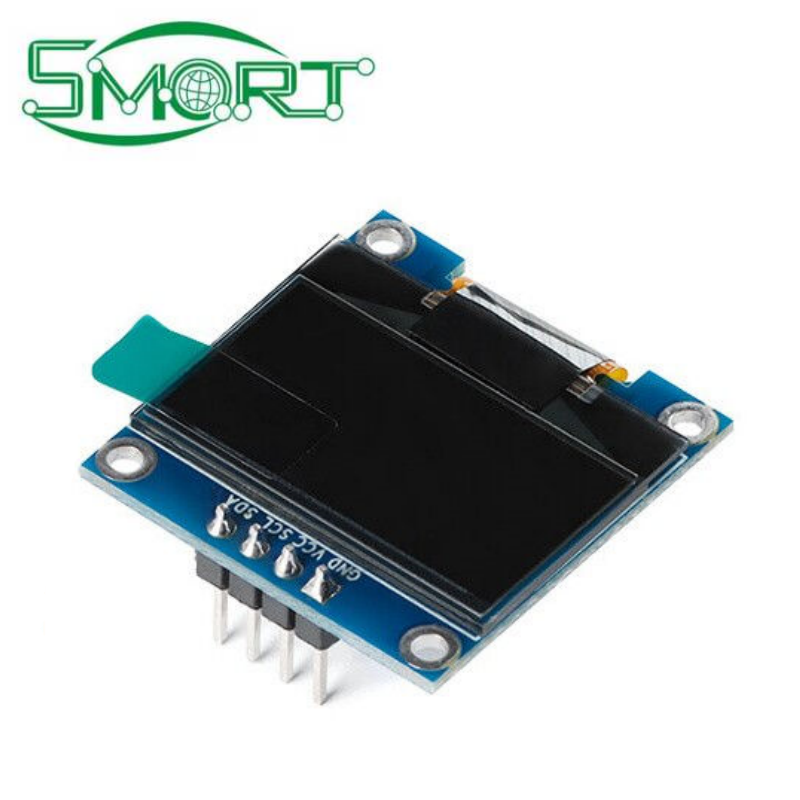

Smart Electronics 0.96 Inch LED Display Module OLED With 12864 ICC Interface Module

0.96 Inch LED Display Module OLED With 12864 ICC Interface Module
shared：

Product Name
0.96 inch OLED display module
Material
PM OLED
Resolution
128 * 64
Working voltage
3.3V
Control chip
SSD1306
Display area
21.744 *10.864 (mm)
Panel size
26.70*19.26*14 (mm)
Pixel spacing
0.17 * 0.17 (mm)
Pixel size
0.154 *0.154 9(mm)
Number of pins
30 pins (0.7mm spacing welded type)
Working temperature:
-40~70°C


Interface Definition
