Smart Electronics FS200-SHT10-03I2C interface, new housing soil temperature and humidity sensor

FS200-SHT10-03I2C interface, new housing soil temperature and humidity sensor

Features:
Digitization, resolution up to 14bit
Internal self-calibration
Temperature and humidity are tightly combined to facilitate dew measurement
High reliability and long-term stability
I2C serial interface is easy to integrate
Exquisite product structure suitable for field application
shared：

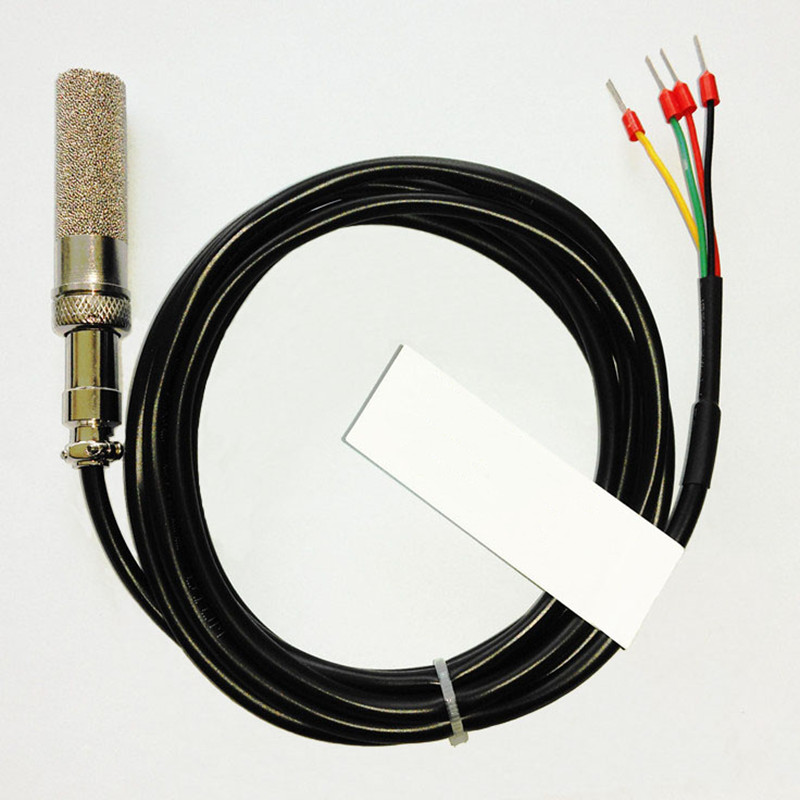

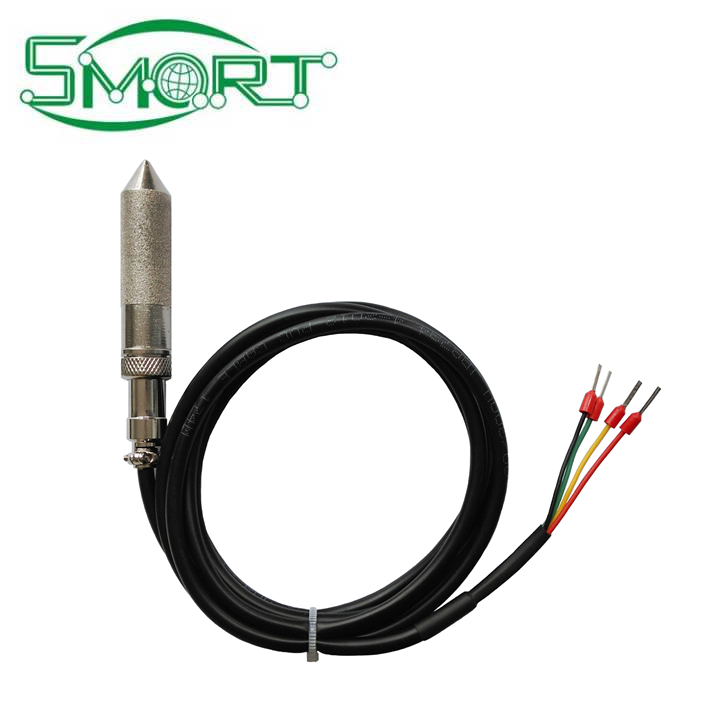

The soil-type temperature and humidity probe adopts the original imported temperature and humidity sensor as the
core component, which can be directly connected to the single-chip microcomputer. It has very high consistency, can

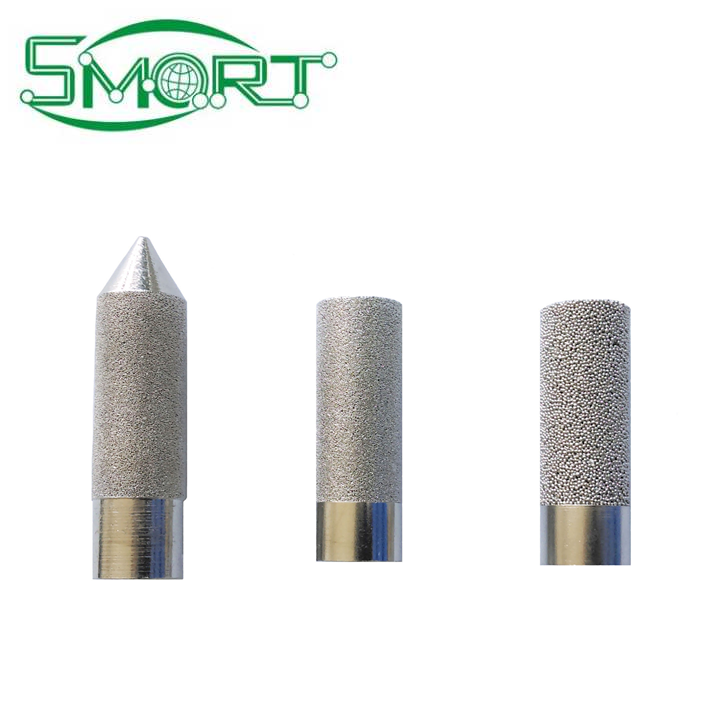

be completely interchanged, and the humidity can reach up to ±4.5%RH. The protection of the copper sintered net
strengthens the temperature resistance, pressure resistance, and damage resistance of the probe. It is suitable for use
in agricultural greenhouses, flowers, nurseries, lawns and other occasions that need to detect soil temperature and humidity.

Model number : FS200-SHT10


Features:

Digitization, resolution up to 14bit Internal self-calibration Temperature and humidity are tightly combined to facilitate dew measurement High reliability and long-term stability I2C serial interface is easy to integrate Exquisite product structure suitable for field application

Technical Parameters:

Working voltage: 3.7~5V Humidity measurement range: 0～100%RH Temperature measurement range: -40～+123.8℃ Humidity measurement accuracy: ±4.5%RH Temperature measurement accuracy: ±0.5℃ Working environment humidity: 0～99%RH Working environment temperature: -40～+90℃ Cable: 4×0.12mm2 shielded cable, 1.5 meters in lengthTerminal definition:Red: power supply (Vcc) Green: Serial data (Sda) Yellow: Serial clock (Sck) Black: Ground (GND)
