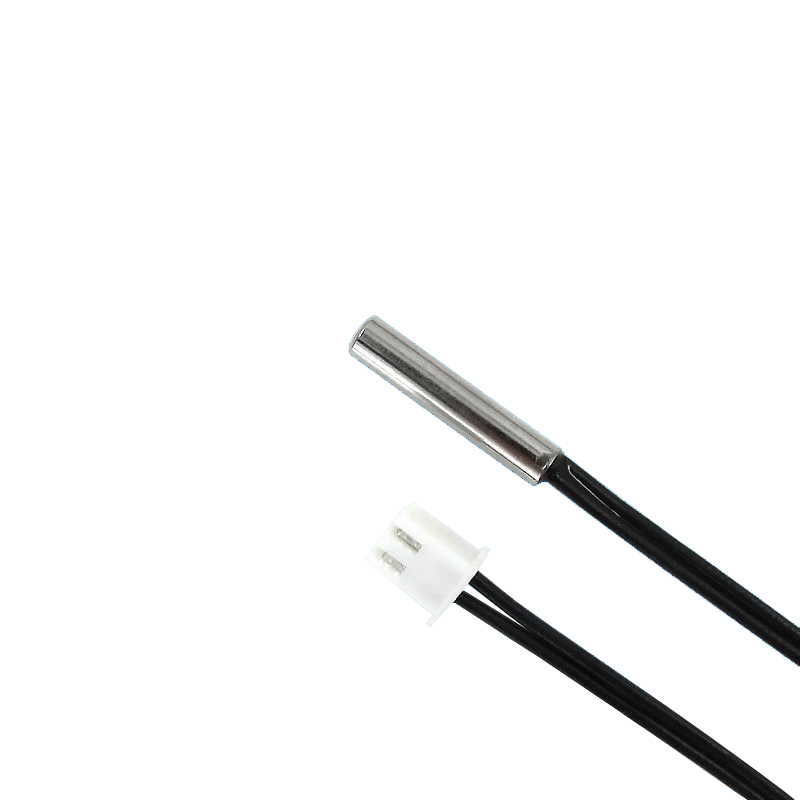

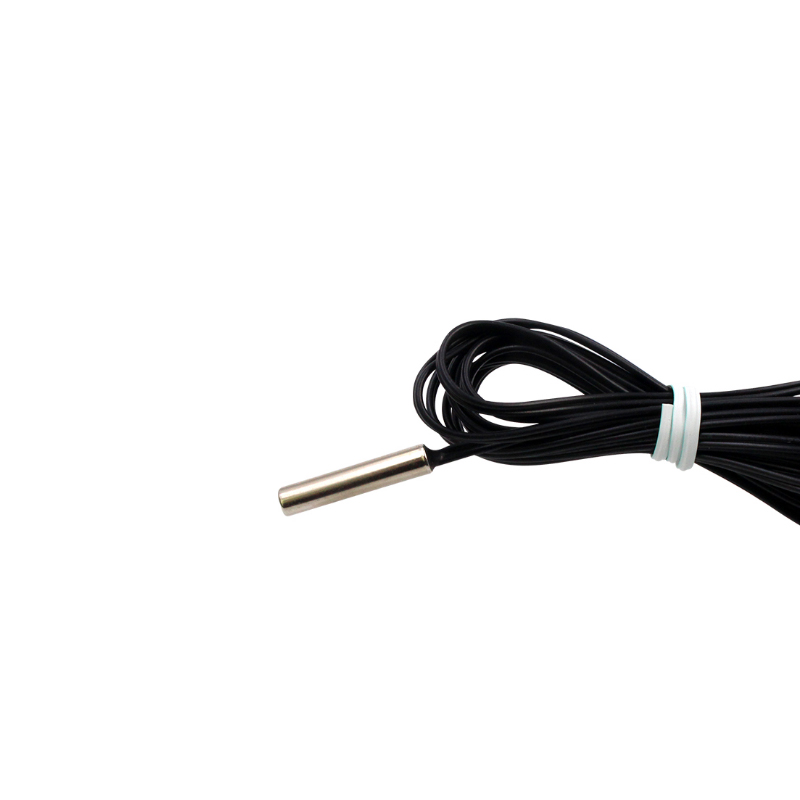

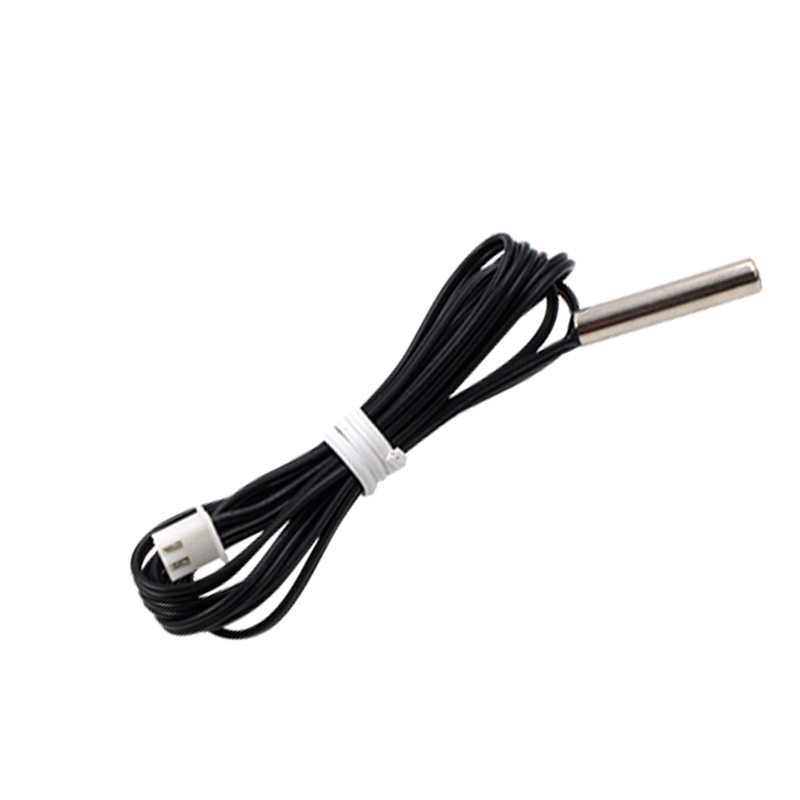

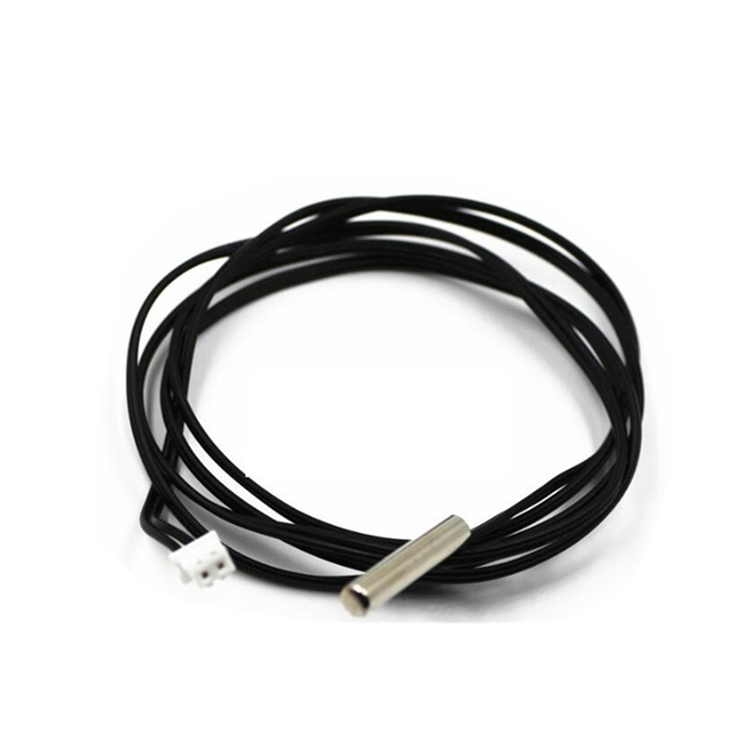

Smart Electronics Stainless steel sheath and waterproof NTC temperature sensor 10K 1%, ntc thermistor 10K

Products > Custom Wire Cable > Smart Electronics Stainless steel sheath and waterproof NTC temperature sensor 10K 1%, ntc thermistor 10K

Smart Electronics Stainless steel sheath and waterproof NTC temperature sensor 10K 1%, ntc thermistor 10K

Stainless steel sheath and waterproof NTC temperature sensor 10K 1%, ntc thermistor 10K

1. Wide operating temperature range, good stability and reliability.
2. Easy to installation and manipulation as the sealing can be done according to environment and conditions there it is applied by customer.
3. Accurate testing can reflect temperature change precisely.
4. Insulating resistance(MΩ): more than 100MΩ
5. Working temperature range(celsius): -40 to +100
6. Dissipation factor(mw/celsius): 5-15 (in still air)
7. Thermal time constant(s): 20-50 (in air)
shared:


Features:

1. Wide operating temperature range, good stability and reliability. 2. Easy to installation and manipulation as the sealing can be done according to environment and conditions there it is applied by customer. 3. Accurate testing can reflect temperature change precisely. 4. Insulating resistance(MΩ): more than 100MΩ 5. Working temperature range(celsius): -40 to +100 6. Dissipation factor(mw/celsius): 5-15 (in still air) 7. Thermal time constant(s): 20-50 (in air)

Usage

Mainly used in battery packs. Battery cookers, air conditioners, home appliances, machinery, air conditioners, refrigerators,
freezers, soymilk machines, bread machines, water dispensers and other household appliances, medical instruments,
temperature control instruments, electronic gifts, electronic thermometers and hygrometers; automotive temperature
measurement, electronic calendars ,Charger battery pack and charger, induction cooker, electric pressure cooker, rice cooker,
electric oven, disinfection cabinet, water dispenser, microwave oven, electric heater, industrial, medical, environmental protection,
meteorology, food processing equipment and other household appliances temperature control and temperature detection
and Office automation equipment (such as copiers, printers), instrument coils, integrated circuits, quartz crystal oscillators
and thermocouples, etc. temperature detection and temperature compensation.


NOTICE:
Dear Buyer, In order to help you get the exact model, please offer the following necessary info.:                 1, The application of the NTC thermistor:__________ 2, Working environment of NTC thermistor:________ 3, The range of operation temperature:___°c to ___°c 4, The dimension and the drawing of the Thermistor 5, The R value:_____K ohm ±________%  at _____°c, 6, The B value: (_____°c/____°c) = ______K ± _____% 7, The theral time Value:____s --_________s, _______. More information, please contact us.  we can make the best service to you!! Thank you in advance
About Customization:

Other parameters and wire length can be customized according to customer needs. Commonly used resistance values 5K, 10K, 15K, 20K, 50K, 100K Commonly used resistance B values are 3950 and 3435 and 3470, 3380, etc. Accuracy is 1%, 3%, 5% If you need customization, please contact us and tell us your requirements!

Support customized NTC wire, NTC probe and steel tube with short delivery time,
quality assurance, and affordable prices.
