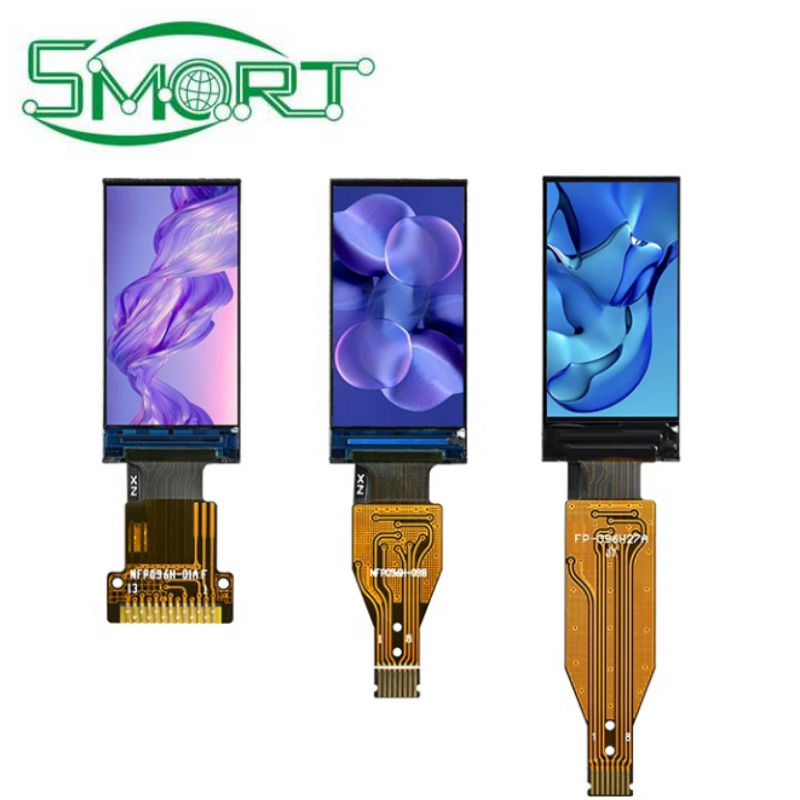

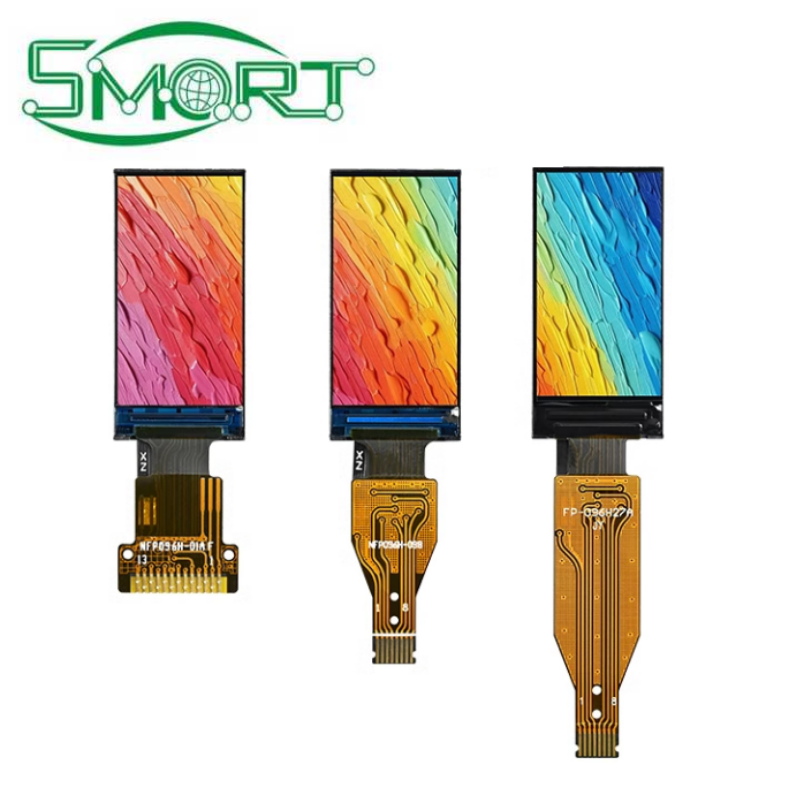

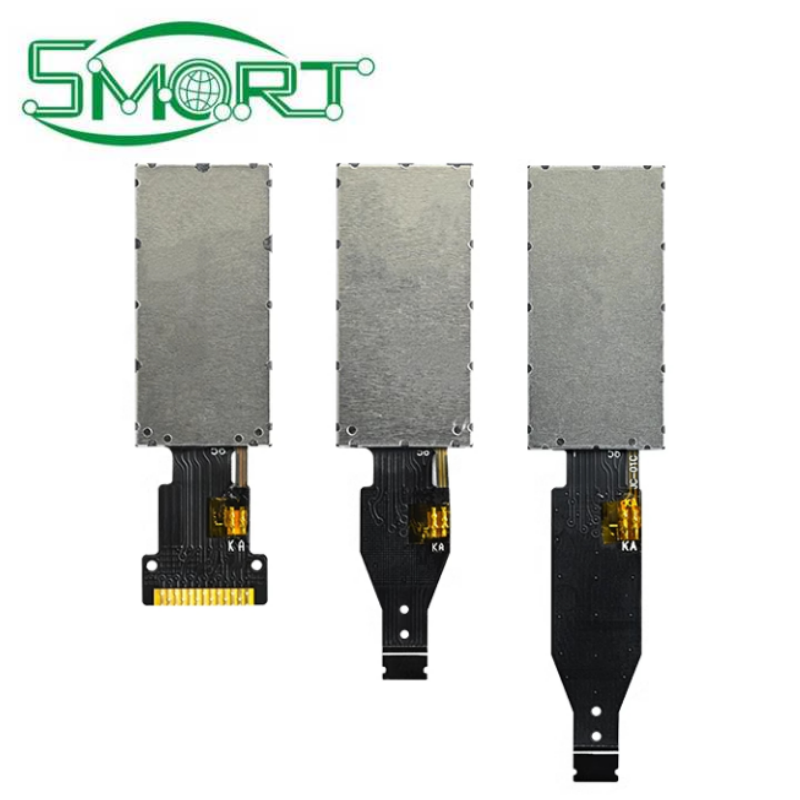

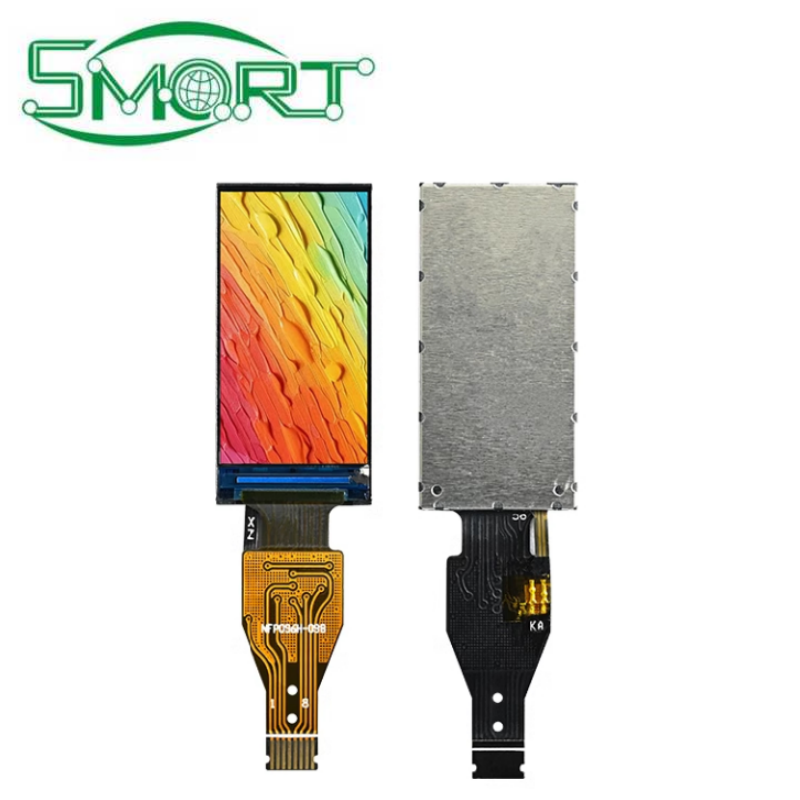

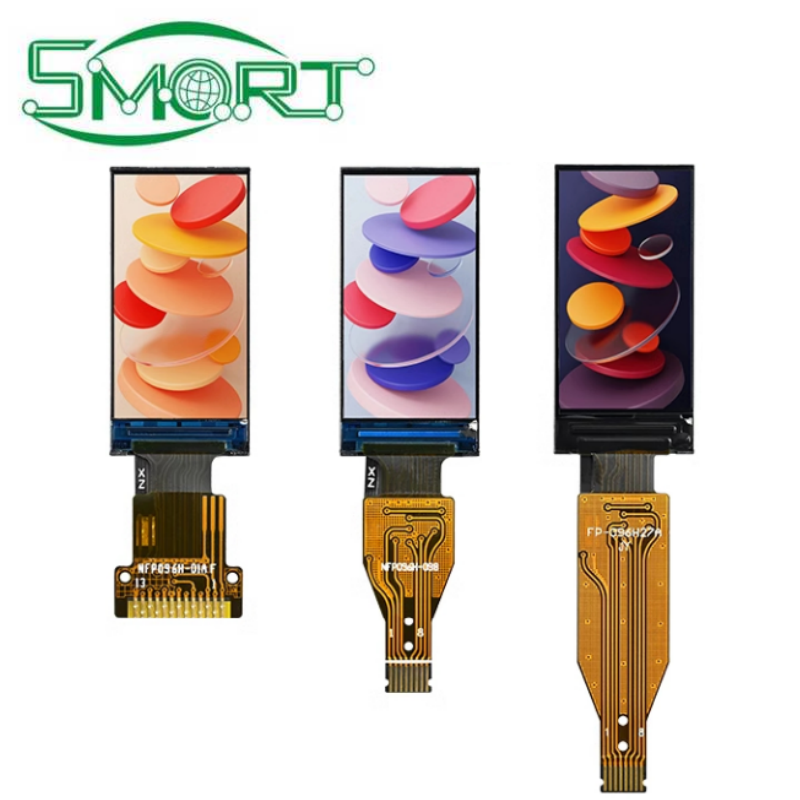

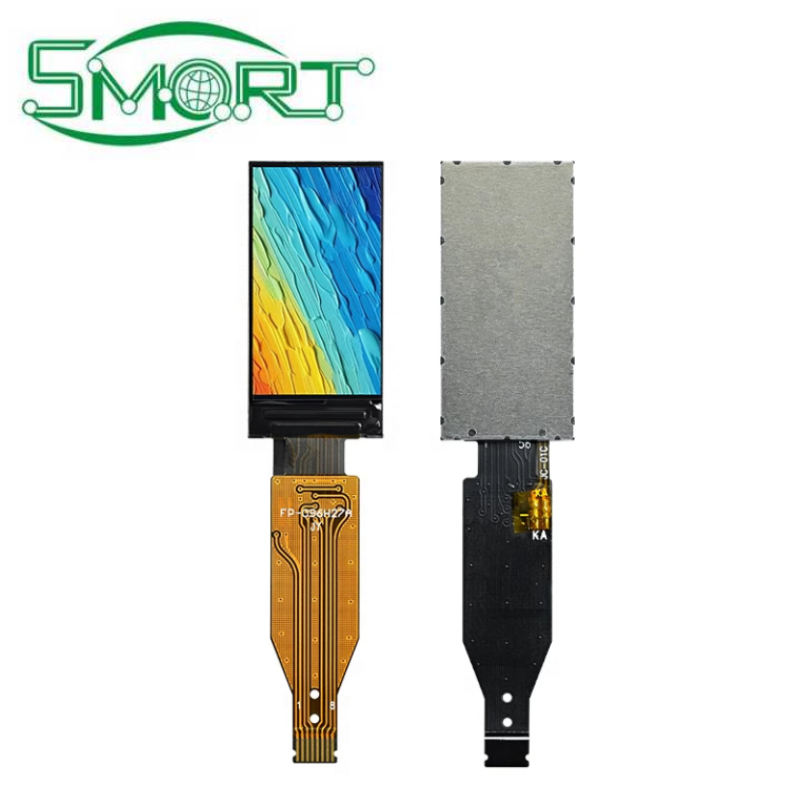

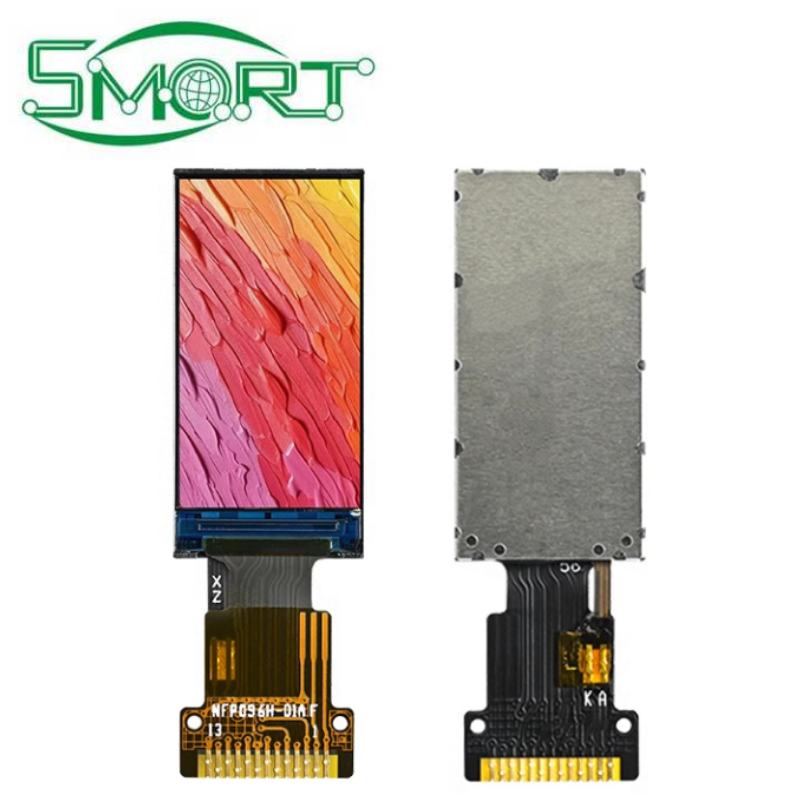

Smart Electronics IPS 0.96-inch TFT display IPS LCD screen 0.96 "st7735 IPS display screen 0.96 inch LCD Module

IPS 0.96-inch TFT display IPS LCD screen 0.96 "st7735 IPS display screen 0.96 inch LCD Module
shared：

Size
0.96 inches
Material
High definition IPS LCD
Resolution
80 (H) RGB x 160 (V)
Driver chip
ST77355
Communication interface
4 Line SPI
Display color
Full color
Display area
10.8 (H) × 21.7 (V) mm

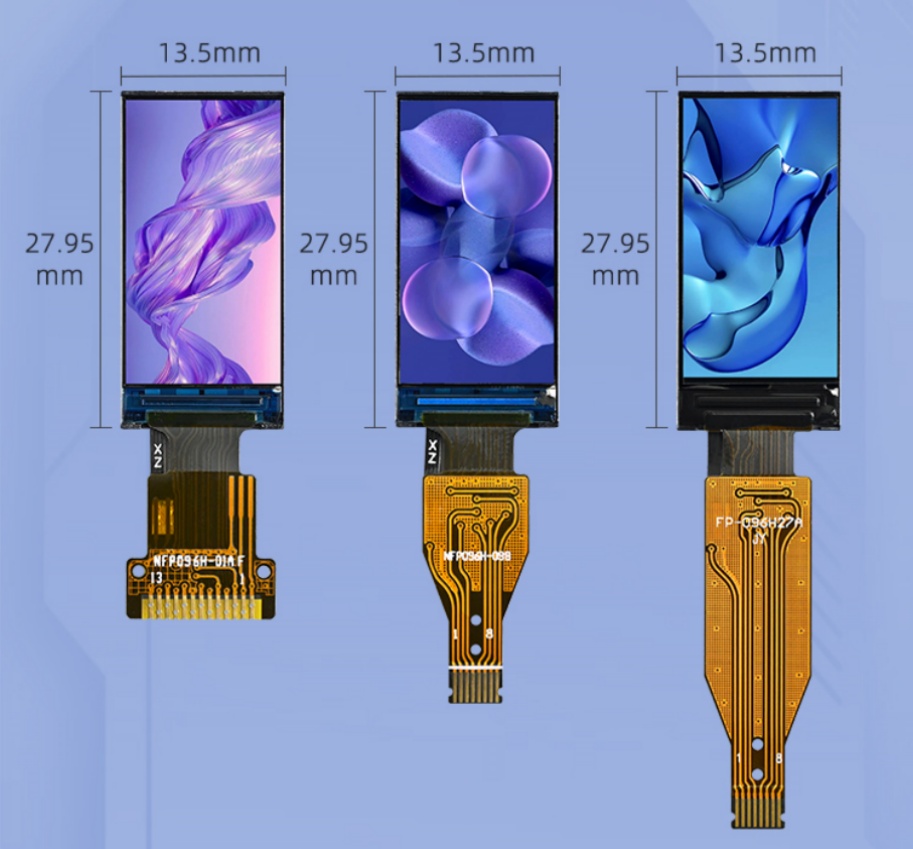

Panel size
13.5 (H) x27.95 (V) × 15Max (D) mm
Pixel spacing
0.135 (H) X0.1356 (V) mm

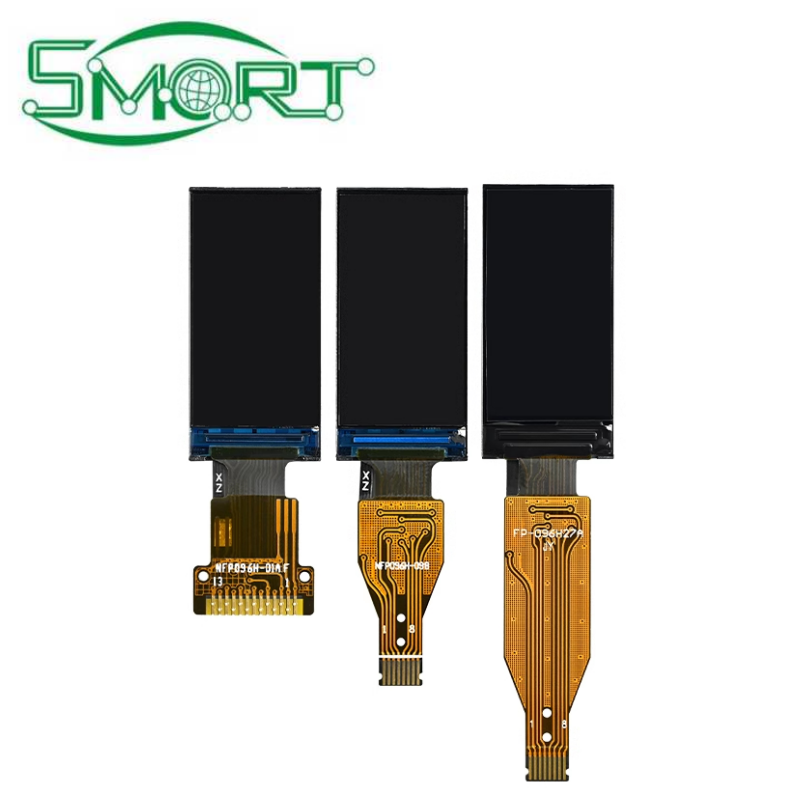

Connection method
Welding type 13 pin (0.7mm spacing welding type)
Connection method
Plug in 8Pin (0.5mm pitch top up FPC cable, with two lengths to choose from)
Perspective direction
All View
Working voltage
3.3V
Working current
20ma
Backlight type
1LED
Working temperature
-20~70 ° C


Name
Phone
Email
Corporate name
Address
Leaving Message*

Verification code
Submit

TPA3110 XH-A232 30W+30W 2.0 Channel Digital Stereo Audio Power Amplifier DC 8-26V 3A C6-001 3110 Amplifier Board

Smart Electronics High power three channel amplifier module TDA2050+TDA2030 2.1 subwoofer amplifier circuit board

High power three channel amplifier module TDA2050+TDA2030 2.1 subwoofer amplifier circuit board

Smart Electronics Sound sensor module voice control switch strength detection audio amplifier microphone LM386

Sound sensor module voice control switch strength detection audio amplifier microphone LM386 The LM386 is an audio integrated power amplifier with its own low power consumption, adjustable gain for updating the internal chain, wide supply voltage range, fewer external components and less total harmonic distortion. It is mainly used in low-voltage consumer products. In order to minimize the peripheral components, the voltage gain is built-in as 20, and by adding an external resistor and capacitor between pin 1 and pin 8, the voltage gain can be adjusted to any value within 200.

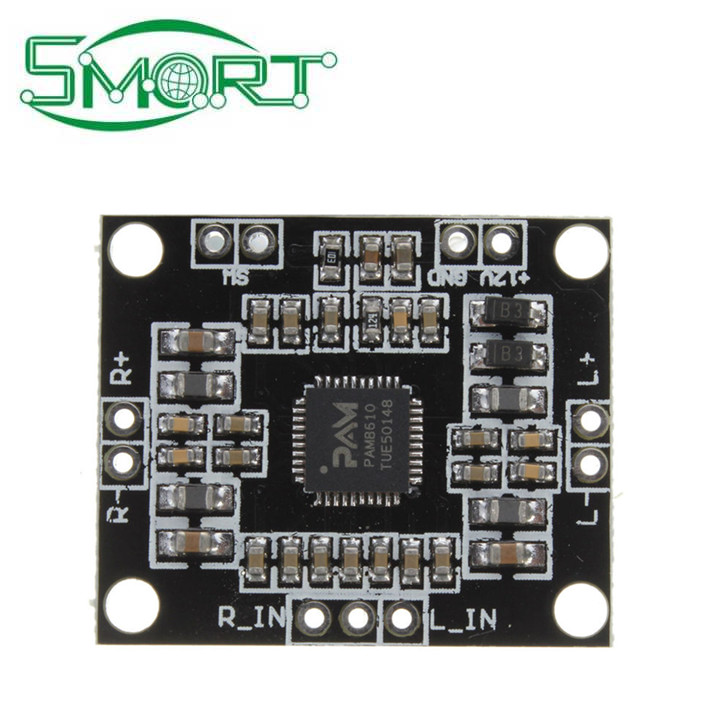

Smart Electronics Electric Unit PAM8610 12V 2x15W Dual Channel Stereo C Digital power amplifier board

Electric Unit PAM8610 12V 2x15W Dual Channel Stereo C Digital power amplifier board This plate with switching function, SW short, will turn off the power amplifier Working Mode: Class D (PWM modulation type) Chip Type: PAM8610 Power Range: DC 6V-15V (self-protection) Recommended Voltage: DC 12V(2A) Output Power: 10Wx2(8Ω) 15Wx2(4Ω) Frequency Response: 20HZ-15KHZ Static Current: 20MA (DC12V) SNR: 90% Recommended Speakers: 10-100W Input Impedance: 15K Output Impedance: 4-8Ω Harmonic Distortion: <0.1% Size: Approx. 3cm x 2.5cm/ 1.19" x 0.98"

Smart Electronics 8.29 Megapixel USB Camera Module 4K30 fps Industrial Camera IMX678 Modules

8.29 Megapixel USB Camera Module 4K30 fps Industrial Camera IMX678 Modules

Smart Electronics ESP32-CAM WiFi WiFi Module ESP32 serial to WiFi ESP32 CAM Development Board 5V Bluetooth with Camera Module

ESP32-CAM WiFi WiFi Module ESP32 serial to WiFi ESP32 CAM Development Board 5V Bluetooth with Camera Module The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system, measuring only 27*40.5*4.5mm, with deep sleepcurrent and a minimum of 6mA. ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

Smart Electronics 300W 20A DC-DC Buck Converter Step Down Module Constant Current LED Driver Power Step Down Voltage Module

300W 20A DC-DC Buck Converter Step Down Module Constant Current LED Driver Power Step Down Voltage Module

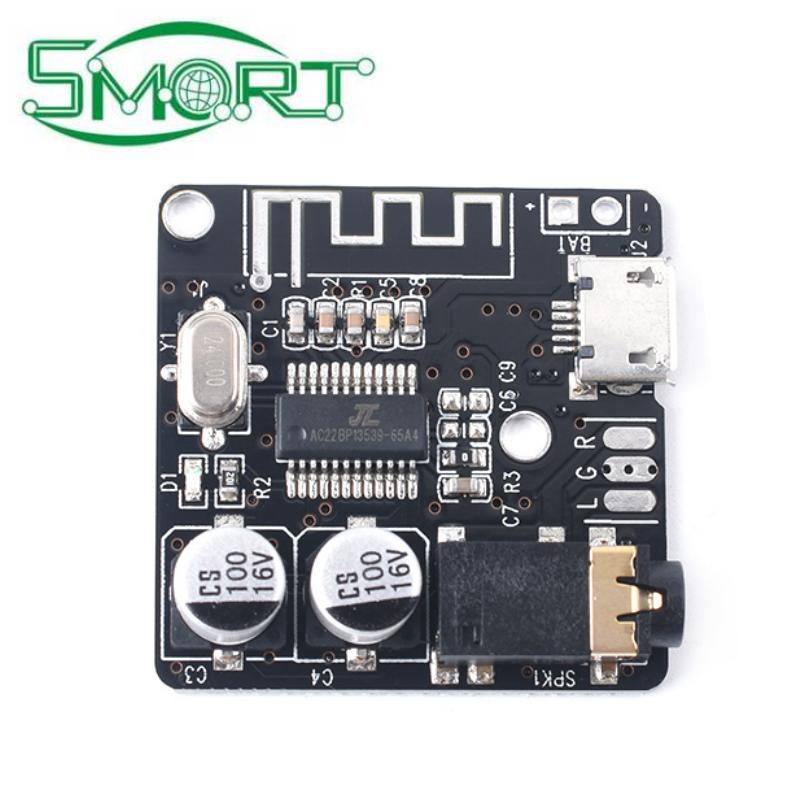

Smart Electronics Mini Ble Audio Receiver Amplifier Board Module With Stereo Speakers
