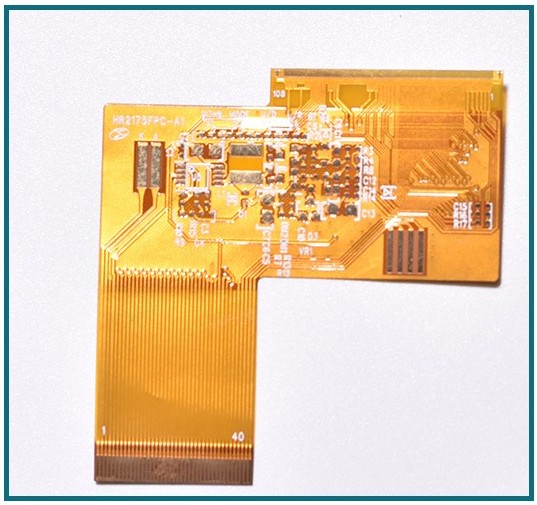

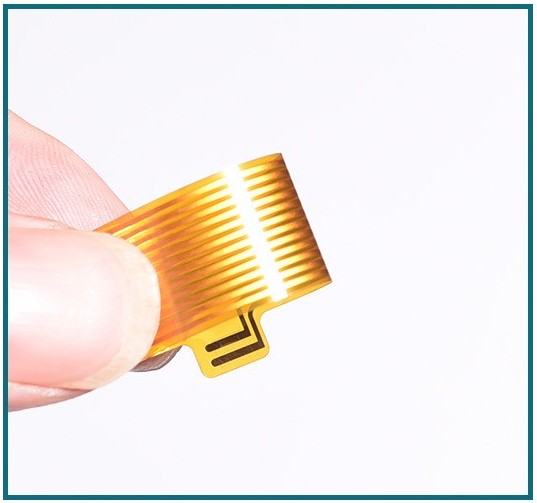

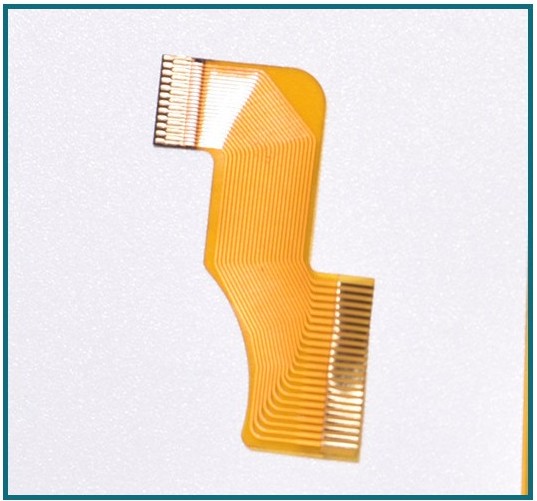

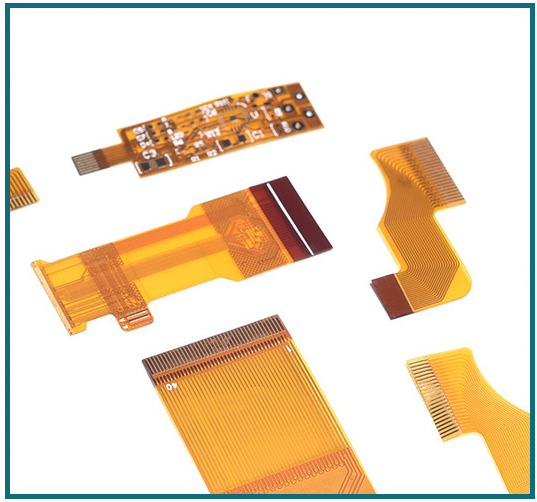

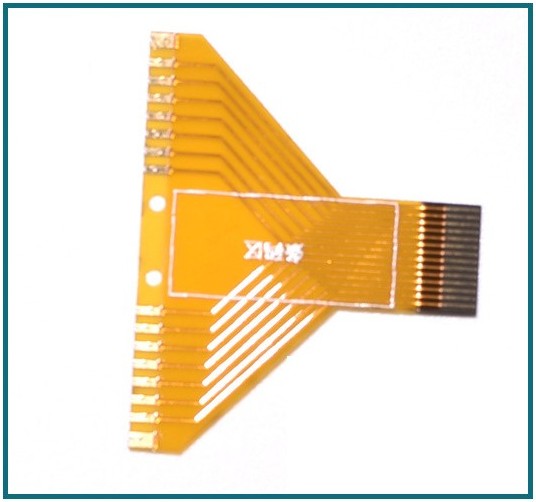

Smart Electronics Flexible Printed Circuit Board Flex PCB Board Made In China Customized FPC For Wearable Devices

Flexible Printed Circuit Board Flex PCB Board Made In China Customized FPC For Wearable Devices

Materials : PI, copper and Ni/Au
Type : FPC
layers : 1-4 layers
Finished board dimensions : 10 x 15, 250 x 380mm
Board thickness : 0.057 to 0.6mm
Finished board thickness tolerance : ±2 mils
Drill hole diameter : 0.15 to 6.7mm
Finished via diameter : 0.1mm (minimum)
Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm
shared：

Materials : PI, copper and Ni/Au

Type : FPC

layers : 1-4 layers

Finished board dimensions : 10 x 15, 250 x 380mm

Board thickness : 0.057 to 0.6mm

Finished board thickness tolerance : ±2 mils

Drill hole diameter : 0.15 to 6.7mm

Finished via diameter : 0.1mm (minimum)

Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm
