Smart Electronics Original Chip DRV8825 DRV 8825 Stepper Motor Driver With Heatsink With Retail Package

Original Chip DRV8825 DRV 8825 Stepper Motor Driver With Heatsink With Retail Package
shared：

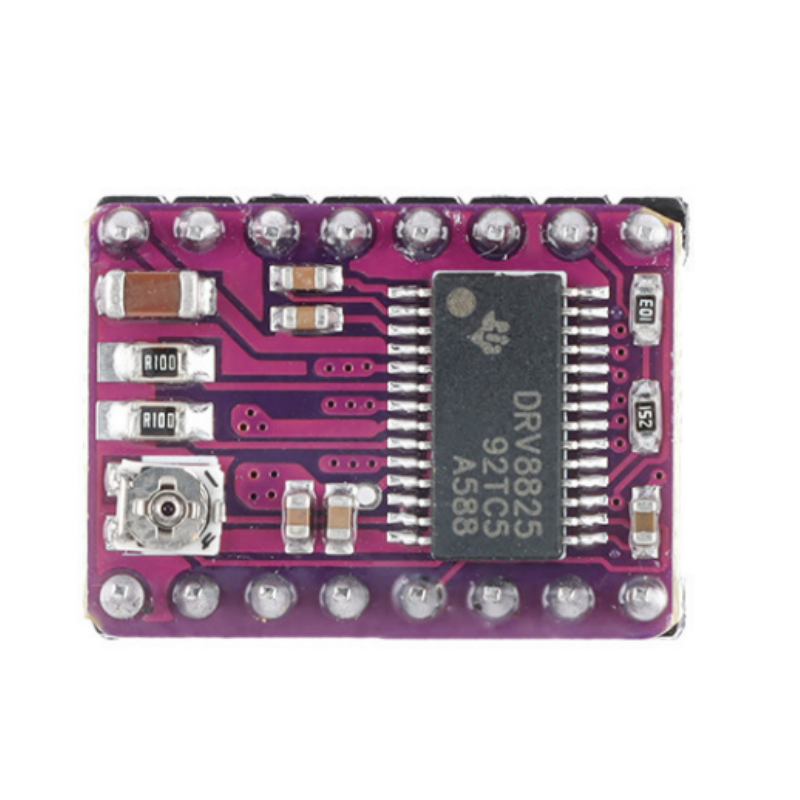

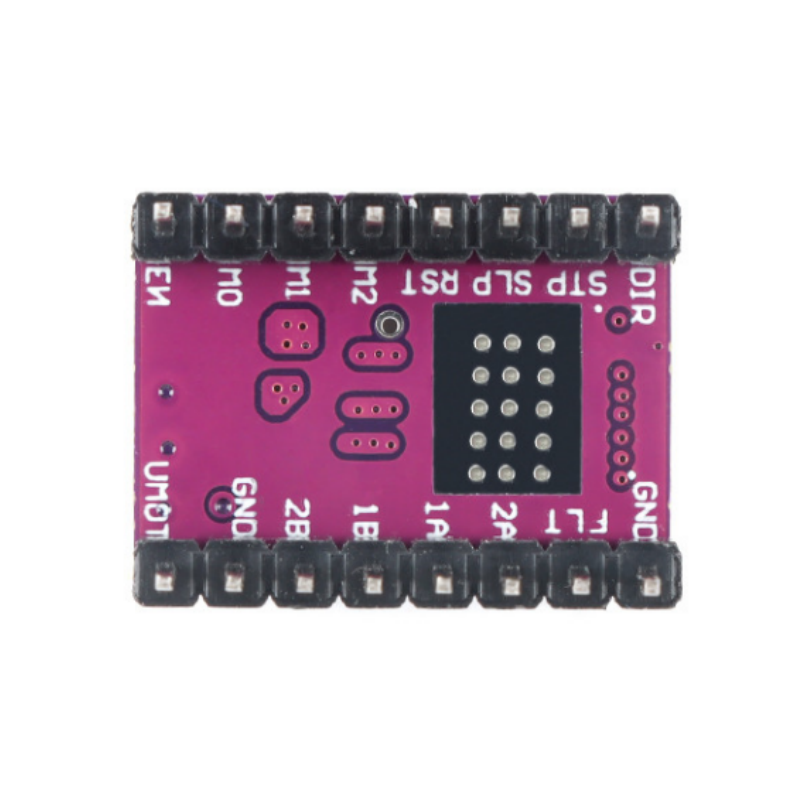

DRV8825 stepper motor driver board 3D printer StepStick Repap module/PCB board

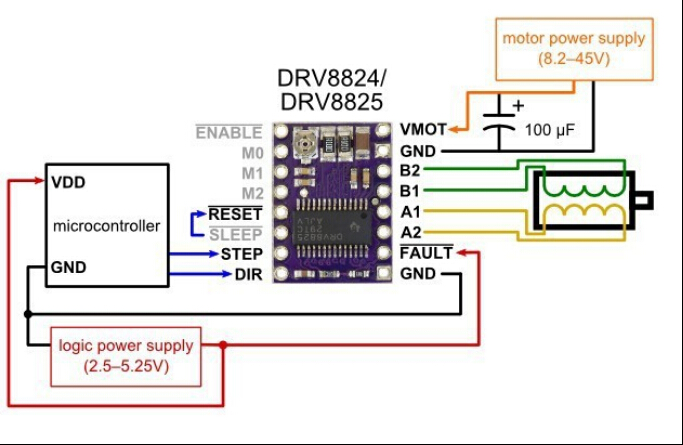

This product is a 3D printer accessory DR8825 stepper motor driver, which can drive stepper

motors below 8.2V-45V 2.5A. It only has a simple stepper and direction control interface, and

has six different stepper modes: full, half, 1/4, 18, 1/16, 1/32. There is also an adjustable

potentiometer to adjust the current output, thereby achieving higher stepper rates.

It has automatic current decay mode detection/selection.

Drivable current: 2.5A Segmentation: 1, 1/2, 1/4, 1/8, 1/16, 1/32 Grounding protection: Yes Load short-circuit protection: Yes Cross current protection: Yes Under voltage locking: Yes Overheat shutdown circuit: Yes Product size: 15mm * 20mm
