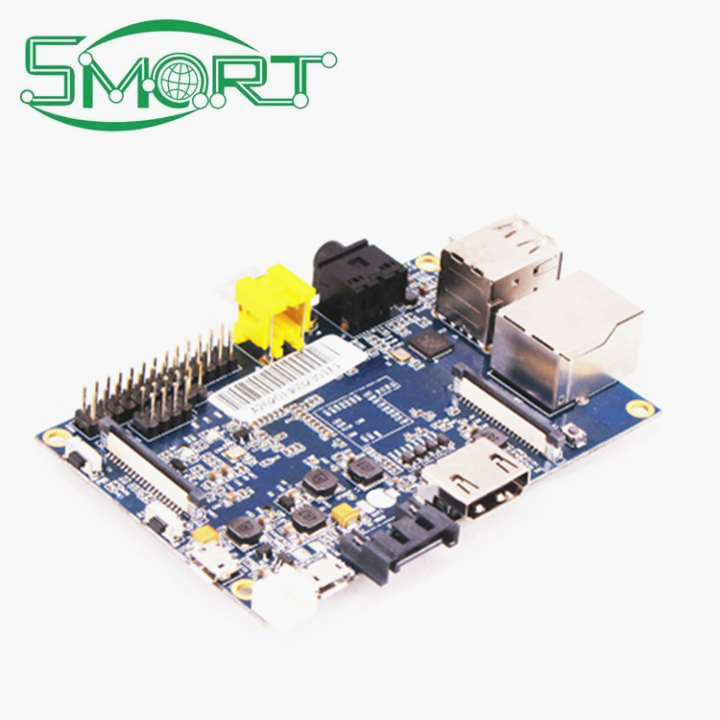

Original BPI-M1 Banana Pi M1 board A20 Dual Core 1GB RAM Open-source development board single-board computer SBC

Banana PI M1 is the open source hardware platform which published to assistant the
Elastos.org open source OS, Banana PI M1 is the dual core Android 4.2 product which more
better than the Raspberry Pi.

Banana Pi M1 series run Android,Debian linux,Ubuntu linux, Raspberry Pi imange and
cubieboard imange.
Elastos coordinate multi CUP to from the family cloud entirnment which based on the
“software/hardware service”
shared:

Banana PI M1 is the open source hardware platform which published to assistant the
Elastos.org open source OS, Banana PI M1 is the dual core Android 4.2 product which more
better than the Raspberry Pi.

Banana Pi M1 series run Android,Debian linux,Ubuntu linux, Raspberry Pi imange and
cubieboard imange.
Elastos coordinate multi CUP to from the family cloud entirnment which based on the
“software/hardware service”
Original BPI-M1 Banana Pi M1 board. A20 Dual Core 1GB RAM Open-source development board single-board computer SBC



  SOC

  Allwinner A20

  CPU

  A20 ARM Cortex™-A7 Dual-Core

  GPU

  ARM Mali400MP2Complies with OpenGL ES 2.0/1.1

  Memory(SDRAM)

  1GB DDR3 (shared with GPU)

  Onboard Storage

  SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk

  Onboard Network

  10/100/1000 Ethernet RJ45,optional WIFI

  Video Input

  A CSI input connector allows for the connection of a designed camera module

  Video Outputs

   CVBS , LVDS/RGB

  Audio Output

  3.5 mm Jack and DMI

  Power Source

  5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)

  USB 2.0 Ports

  2 (direct from Allwinner A20 chip)

  Buttons

  Reset button: Next to MicroUSB connector

  Power button: Next to Reset button

  Boot button (Optional): Behind connector

  GPIO(2X13) Pin

  GPIO,UART,I2C bus,SPI bus with two chip selects,

  CAN bus,ADC,PWM,+3.3v,+5v,ground.

  LED

  Power Status LED (Red)

  Ethernet Status LED (Blue)

  User Define LED (Green)

  Remote

  IR (Optional)

  OS


  Android          Android 4.2           Cubieboard            Ubuntu         Raspberry Pi

  Product Size

  92 mm * 60 mm

  Weight

  48 g
