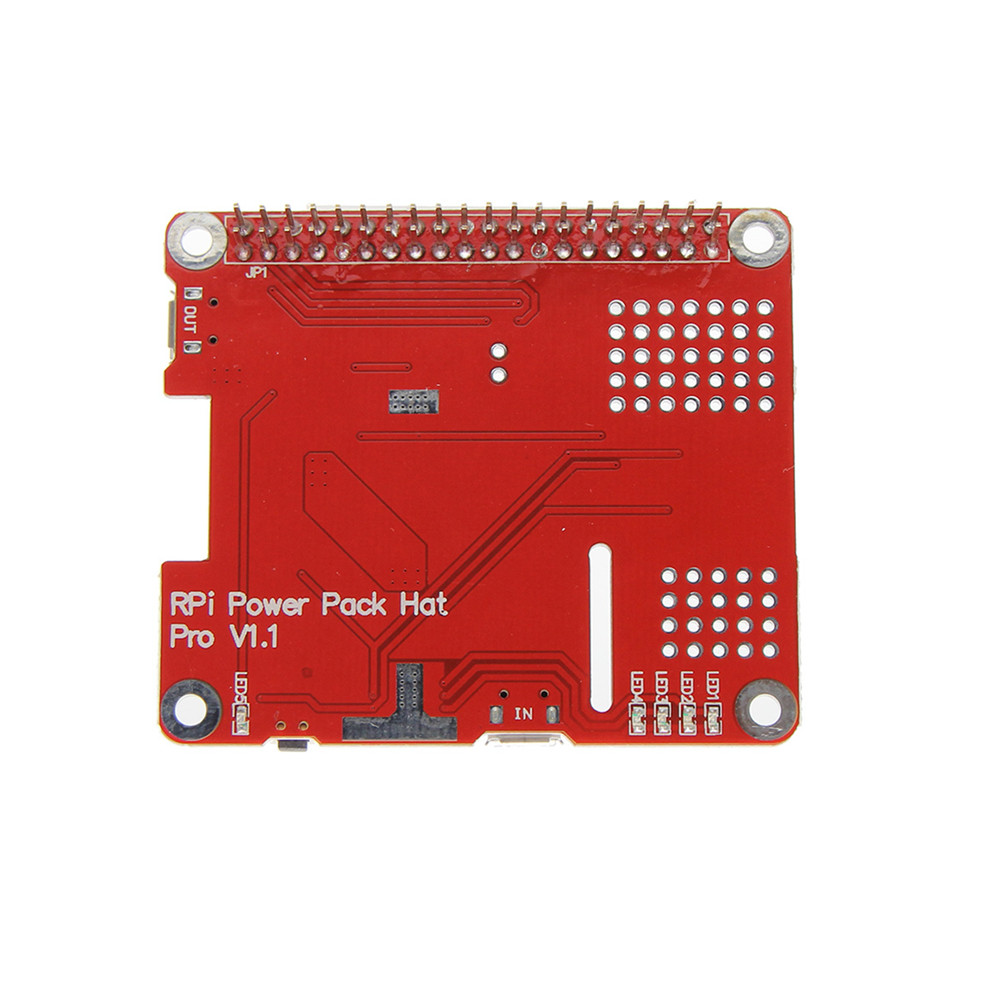

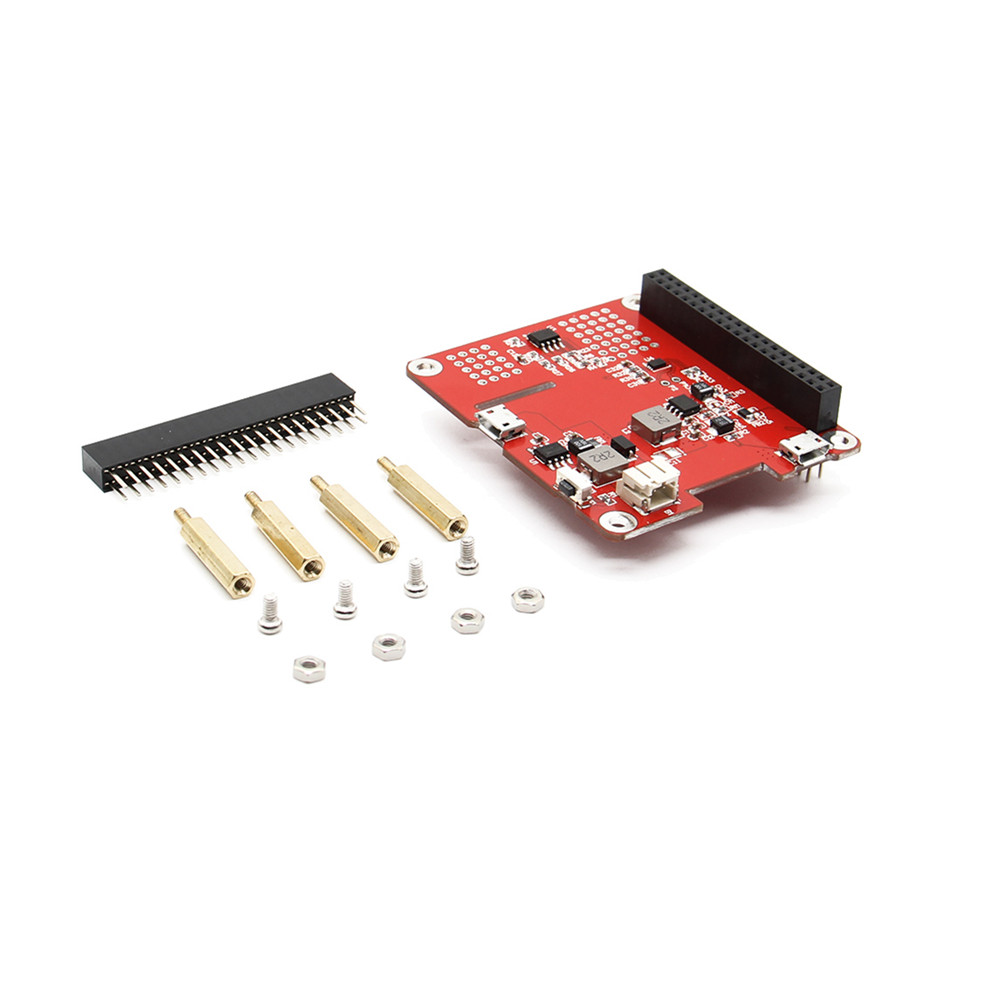

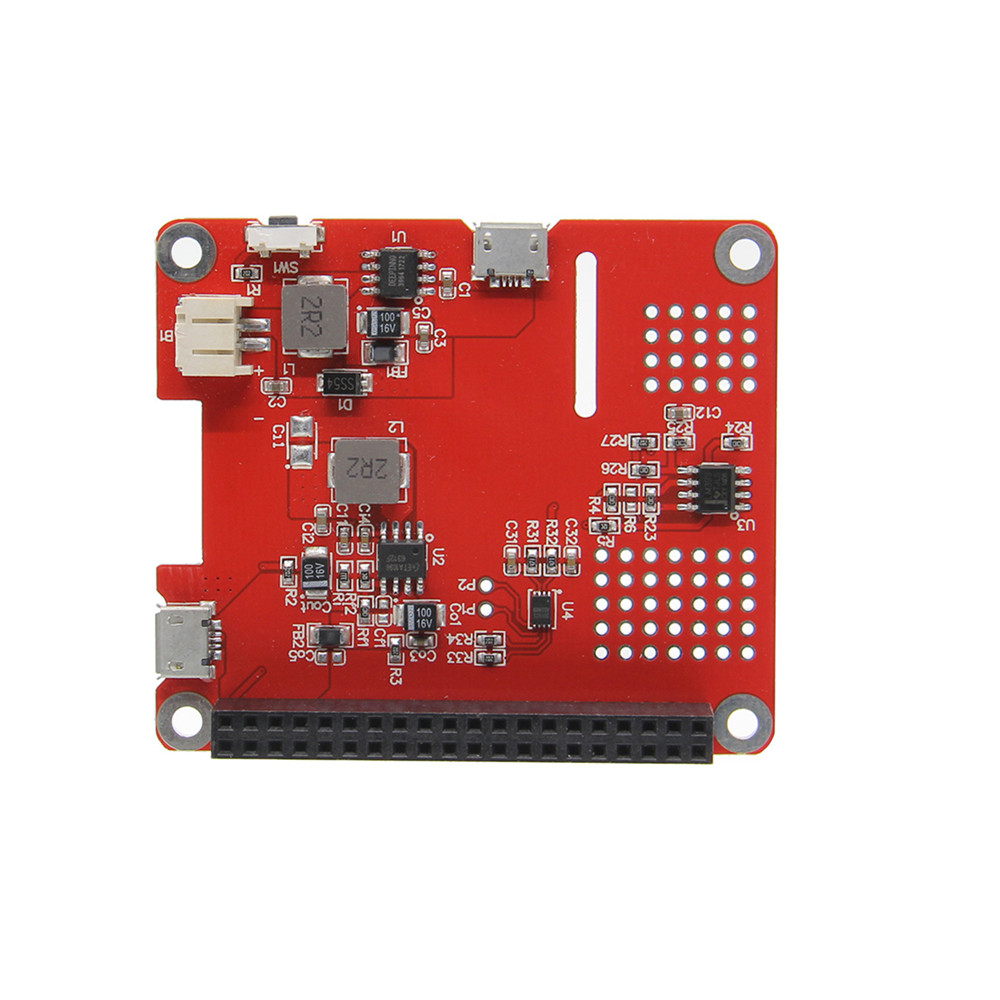

Smart Electronics Power Supply for Raspberry Pi 3, Raspberry Pi Pro V1.1 UPS HAT I2C Lithium Battery Expansion Board

Power Supply for Raspberry Pi 3, Raspberry Pi Pro V1.1 UPS HAT I2C Lithium Battery Expansion Board

This is a power expansion Board especially designed for Raspberry Pi, which enables to
use the Raspberry Pi with a moveable power source. It's more convenient to use external
3.7V Lithium battery or 3.7V 18650 Lithium battery;

shared：


Description:

This is a power expansion Board especially designed for Raspberry Pi, which enables to
use the Raspberry Pi with a moveable power source. It's more convenient to use external
3.7V Lithium battery or 3.7V 18650 Lithium battery;


Specification:

  • Supports I2C Output with Capacity & Voltage Reading Function;

  • Two power supply modes: GPIO power output and USB power out;

  • Support Raspberry pi or Android & Apple Phone or Pad or other electronic device charging;

  • Supports charging while discharging,(it's stable output, the maximum output current can up

    to 1.8A while charging, but the chip heat will become larger.

    Maybe you can place a external heatsilk on clip.)

  • With 4 LED power indicator;

  • Standard dimension of Raspberry Pi HAT;

  • Removable battery, The external lithium battery requirements: 3.7V lithium battery;

  • Built-in power path management, perfect support charging While discharging.

  • Intelligent 3-stage charging (trickle, constant current, constant voltage), it can effectively extend the battery life.

  • Maximum discharge current: 2A, Maximum charge current: 1.8A;

  • Output protection: overcurrent, short circuit, undervoltage protection;

  • Input protection: overvoltage, overcharge, undervoltage protection
