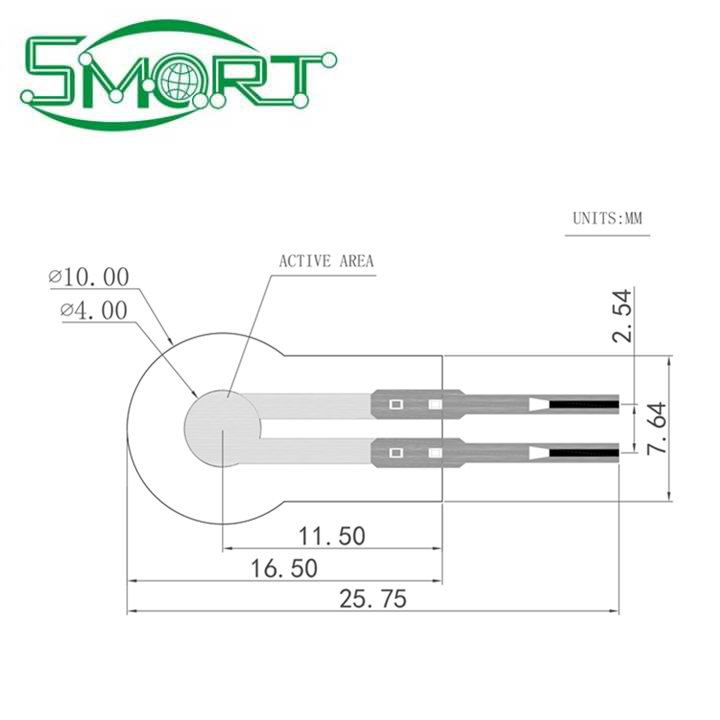

Thin film pressure sensor-single point circular diameter 4 mm flexible resistive FSR

IMS054-C04A (IMS-C04A) is a member of the single-node sensor family. They are all very reliable piezoresistive sensors, using A structure with double-sided silver electrodes. When the pressure (pressure) applied to the effective area of the sensor increases, the output resistance of the sensor decreases, and the single-point sensor can be measured with a multimeter or the customer's own circuit
shared:

Thin film pressure sensor-single point circular diameter 4 mm flexible resistive FSR

Overview
IMS054-C04A (IMS-C04A) is a member of the single-node sensor family. They are all very reliable piezoresistive sensors, using A structure with double-sided silver electrodes. When the pressure (pressure) applied to the effective area of the sensor increases, the output resistance of the sensor decreases, and the single-point sensor can be measured with a multimeter or the customer's own circuit
Range
1kg small force
10Kg middle force
50kg vigorously
100g micro force
Other ranges can be customized according to customer requirements

Opotions


Terminal typeA2 male terminal Female terminal Female terminal plastic shell

A1 male terminal
