Smart Electronics Si7021 Temperature and Humidity Sensor Module High Accuracy I2C Interface Industrial SI7021-A20-GM1R Module

Products > Sensor Module > Smart Electronics Si7021 Temperature and Humidity Sensor Module High Accuracy I2C Interface Industrial SI7021-A20-GM1R Module
    • 1
    • 2
    • 3
    • 4

Smart Electronics Si7021 Temperature and Humidity Sensor Module High Accuracy I2C Interface Industrial SI7021-A20-GM1R Module

Si7021 Temperature and Humidity Sensor Module High Accuracy I2C Interface Industrial SI7021-A20-GM1R Module
shared：

Smart Electronics Si7021 Temperature and Humidity Sensor Module High Accuracy I2C Interface Industrial SI7021-A20-GM1R Module

Working voltage: 1.9-3.6V (recommended 3.3V)

Standby current: 60nA

Temperature range: -40-85 ℃ (recommended -10-60C)

Temperature accuracy: ± 0.4 ℃ (-10-85 ℃)

Humidity range: 0-100% RH (recommended 20% -80% RH)

Humidity accuracy: ± 3% RH (0-80% RH)

Temperature conversion time: 7ms

Humidity conversion time: 17ms (temperature conversion will be automatically performed during humidity conversion)

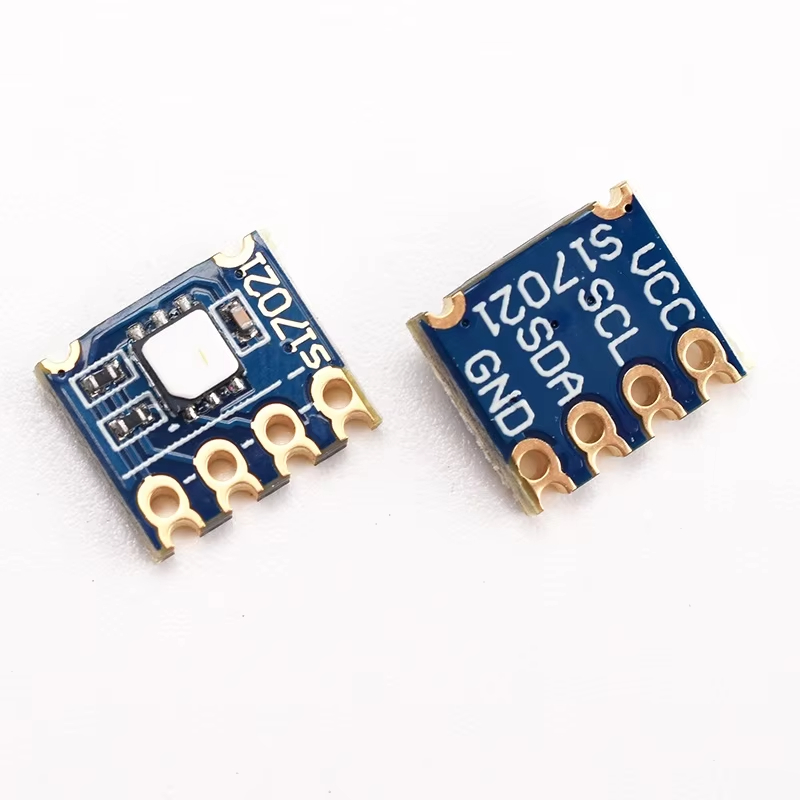

Interface type: 12C 2.54mm spacing solder pad

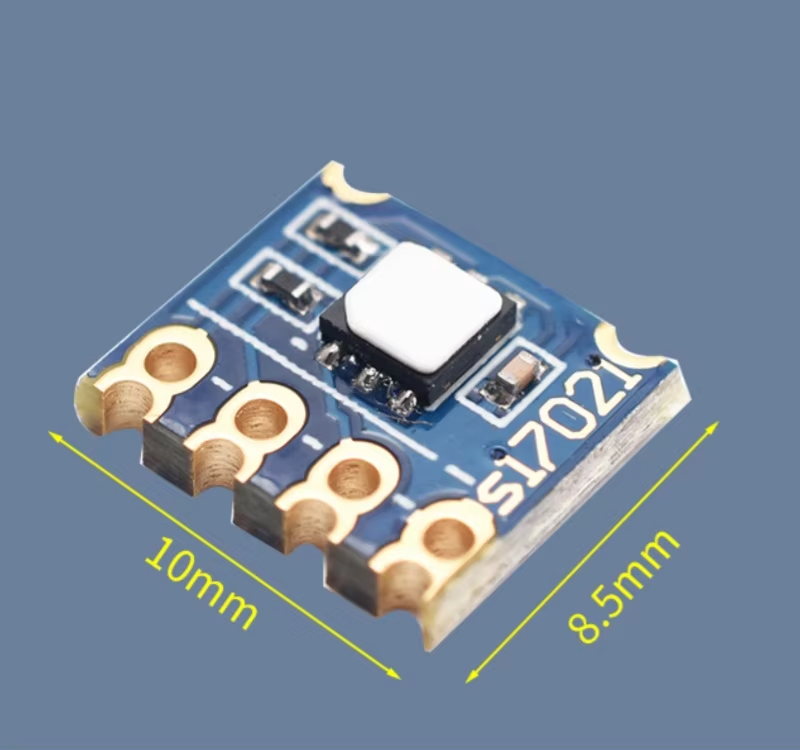

Module size: 8.5X10mm
