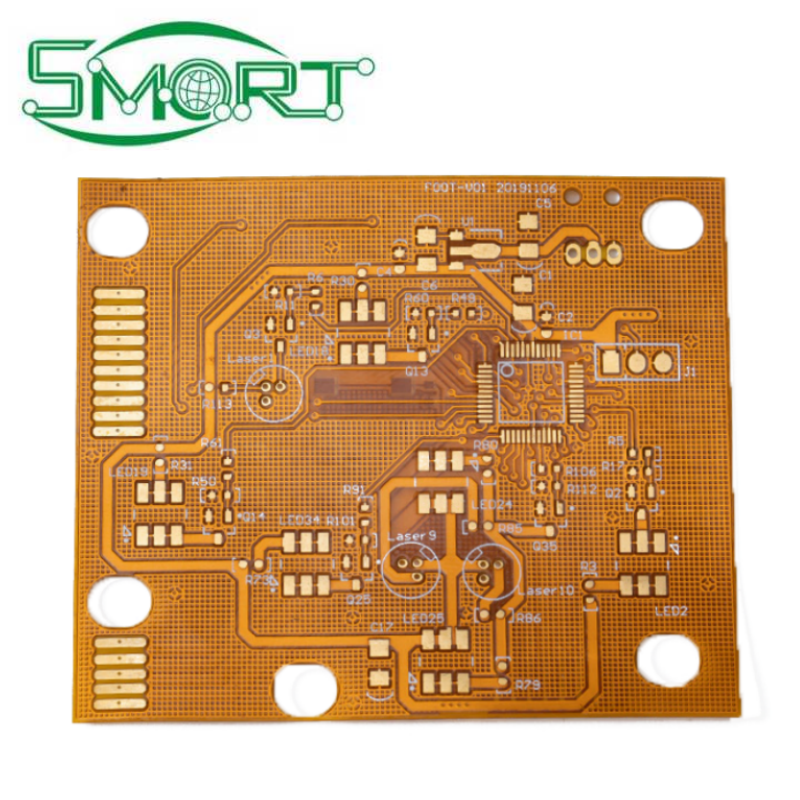

Fpc Flexible Board Manufacturer Prototyping Ultra-thin Pcb Flexible Circuit Board Multilayer Custom Fpc Cable

shared：

TYPE		Attribute	General Standard
Surface Treatment Process	Gold Electroplating	Nickel thickness	1-10UM
		Gold thickness (post gold specification)	0.01UM 0.05UM
		Nickel thickness	0.05UM0.76UM
	Immersion Nickel Gold	Gold thickness	1-5UM
	Immersion Nickel Gold	Tin thickness	0.025UM-0.1UM
	Pure Tin Electroplating	Nickel thickness	5-15UM
	Nickel Palladium Gold	Palladium	3-4UM
		Gold Thickness	0.05UM(MIN)
		Gold thickness	0.05-0.09UM

Serial Number	Item	Process Capability	Tolerance
01	Number of layers	1-16	MAX:500X3000MM
02	Production plate size	MAX:250X3000MM	0.08MM
03	Drilled Hole Diameter	MIN:250X1500MM	土0.03MM
04	Tolerance of drilled hole diameter	6.5MM/0.1MM	15-40UM
05	Copper thickness in hole	±0.05MM	0.05MM/0.05MM
06	Etched line width/spacing	8-12UM	/
07	Etch Tolerance	0.07MM/0.07MM	/
08	Pattern-to-Pattern Accuracy	± 20%(MIN ± 0.03MM)	±0.076MM
09	Overlay Film Alignment Tolerance	±0.076MM	/
10	Punch Hole Diameter	±0.15MM	/
11	Soldermask Alignment Tolerance	3.175MM/2.0MM	/
12	Green Oil Bridge	±0.2MM	/
13	Green Oil to PAD	0.1MM	/
14	Character to PAD	0.08MM	0.15MM
15	Most Power Point Test Pad	0.2MM	/
16	Form Factor Tolerance Range	0.2MMX0.2MM	±0.05MM
17	Finger Edge Spacing	Stroke 0.1MM 0.1MM	0.05MM
