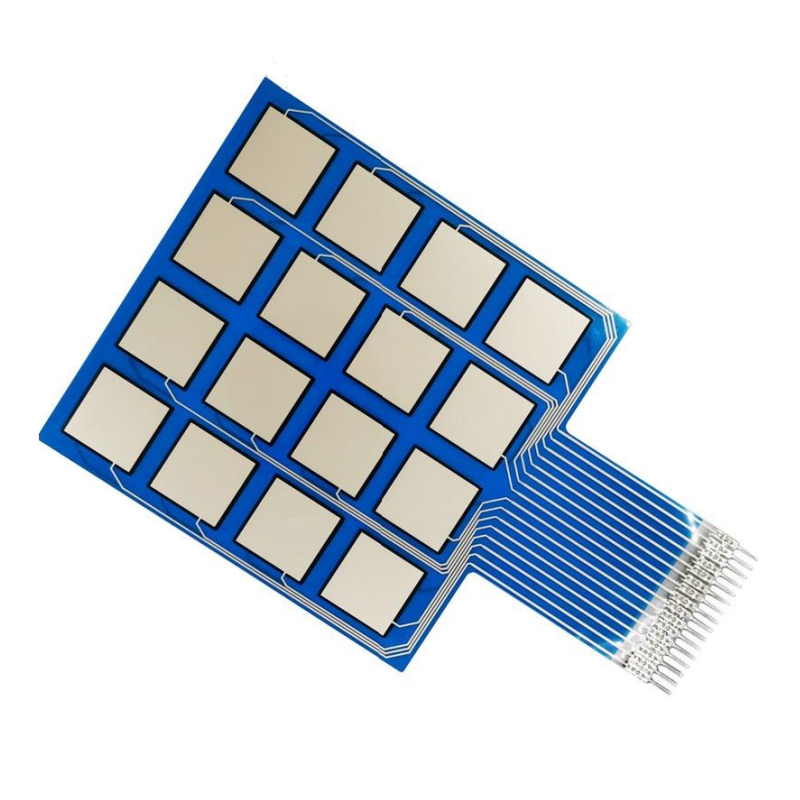

16 Point Thin Film Pressure Sensor IMM00092 Multi point Sensor FSR 1KG 10KG male femail terminal Double layer FPC Cable

Products > Thin Film Pressure Sensor > 16 Point Thin Film Pressure Sensor IMM00092 Multi point Sensor FSR 1KG 10KG male femail terminal Double layer FPC Cable

16 Point Thin Film Pressure Sensor IMM00092 Multi point Sensor FSR 1KG 10KG male femail terminal Double layer FPC Cable

shared:

16 Point Thin Film Pressure Sensor IMM00092 Multi point Sensor FSR

1KG 10KG male femal terminal Double layer FPC Cable

Product Information

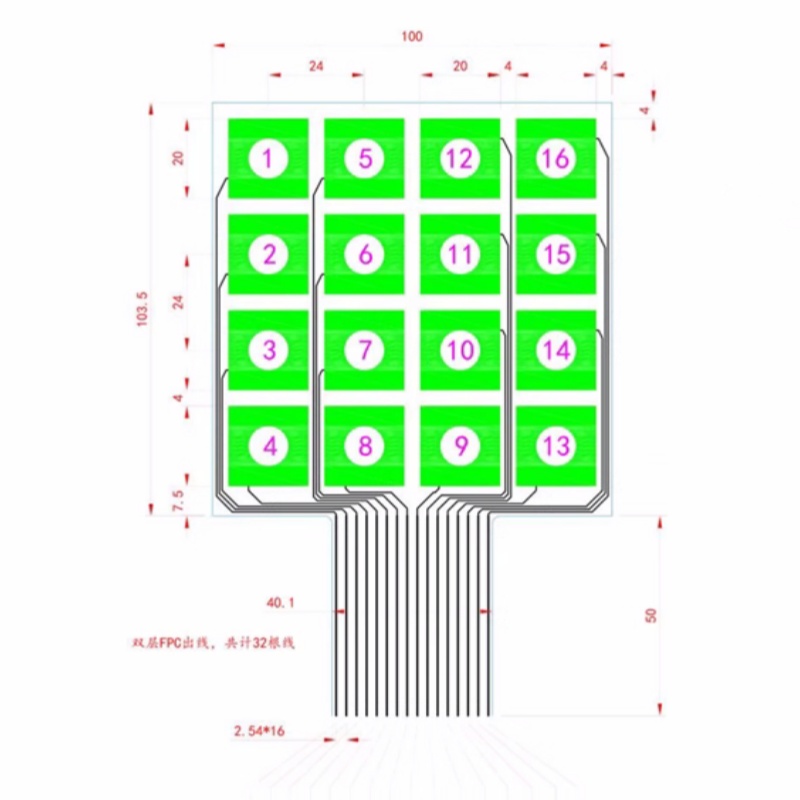

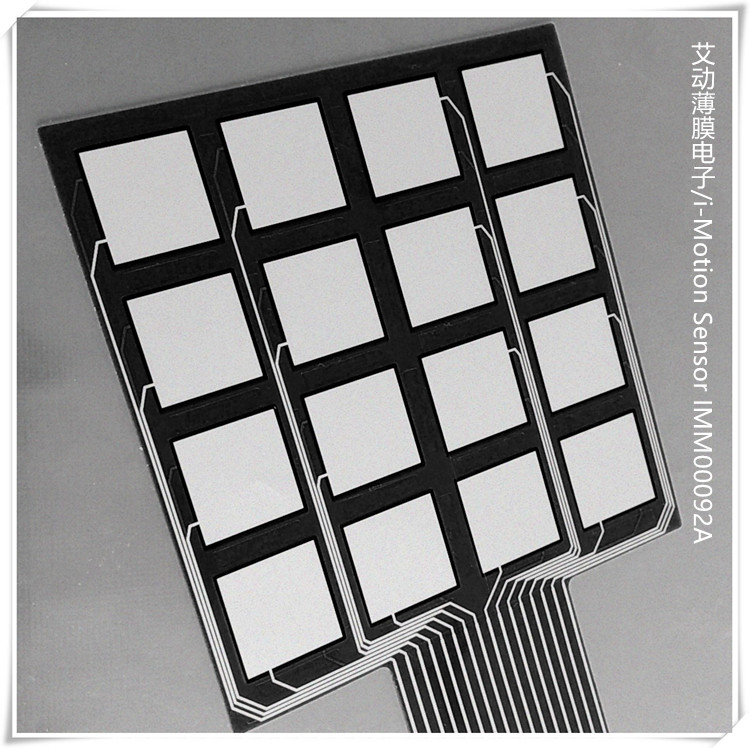

The IMM0092 of Idong Film Electronics is a member of the single-node sensor family. Although IMM092 has 16 nodes, because IMM00092 has 32 lines of output, each node has 2 lines of output, and the 16 nodes are independent of each other. They are very reliable piezoresistive sensors. When the pressure (pressure) applied to the effective area of the sensor increases, the output resistance of the sensor decreases. Single-point sensors can be measured using a multimeter or customer's own circuit.

Purchase options1. Male terminal 2.Female terminal 3.Female terminal+plastic shell
Pressure Range Options
Micro force range: 100g pressure Small force range: 1kg pressure Medium force range: 10kg pressure Power range: 50 kg and above
Other pressure ranges can be customized according to customer requirements
Feature
Value
Note
Minimum force
50g
the minimum force value is different for different ranges, this refers to the small force range sensor
Sensor range
1kg
Pressure resolution
analog output, continuous

Pressure repeatability
10%

No excitation resistance
2 Mega Ohms

Sensor thickness
0.18mm

Static resistance
2 Mega ohms
Unstressed, flat, not bent
Sensor rise time
 <5ms

Long-term drift (creep)
1<5% per log(time)

Use times (life cycle)
1 million times

Working temperature
-40℃~60 ℃

Working humidity
5% ~ 95%

Parasitic capacitance
300P
single node
Substrate type
polyester
Thickness  0.075mm
Uniformity
+-25%
