Access card RFID card reader 125K RF microcontroller serial port DIY modification ID card decoding module

shared:
Description

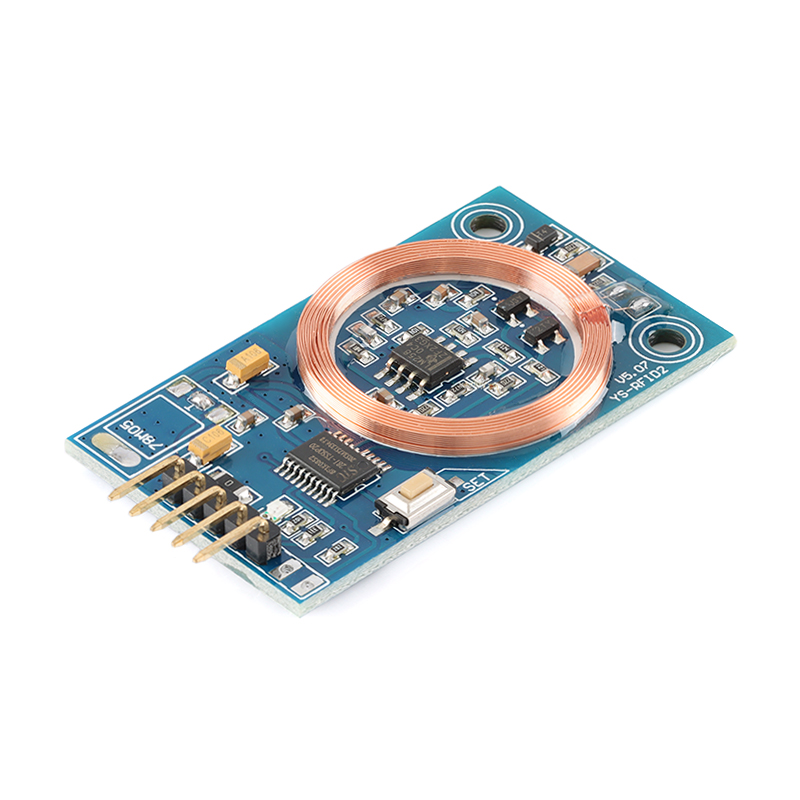

ID card decoding module

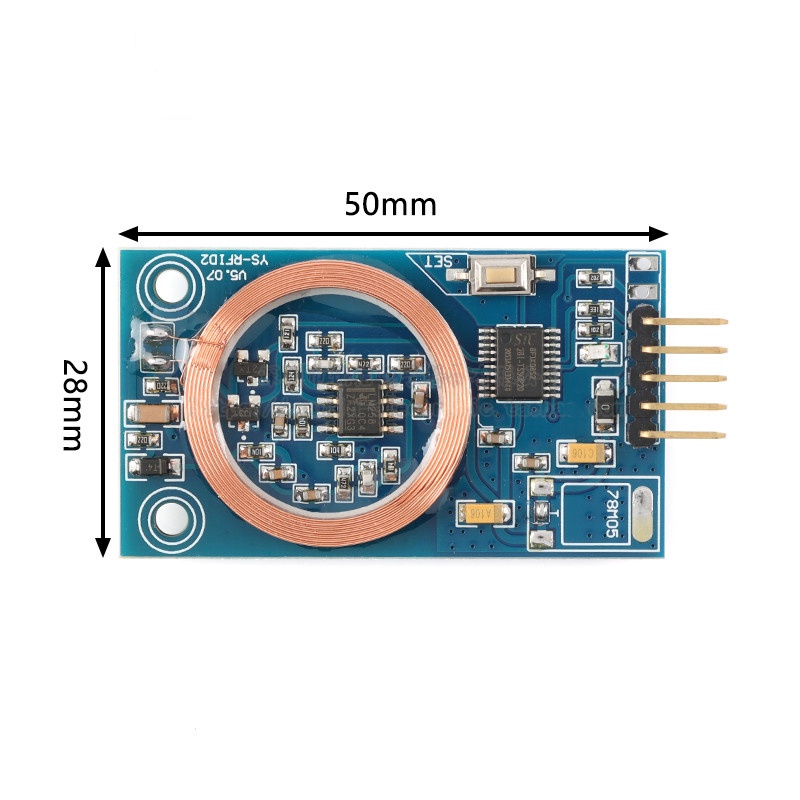

Product size
5 x 2.9 x 0.5cm
Power supply voltage
DC5V
Working current
26ma
Current after induction card
20ma
Sensing distance
The measured distance of the large card is 1-2.3cm (Typical values greater than 1.5cm, customization is available for further distances of 3-6cm)
Output terminal voltage
 around 4.3V (when powered by 5V)
Support type

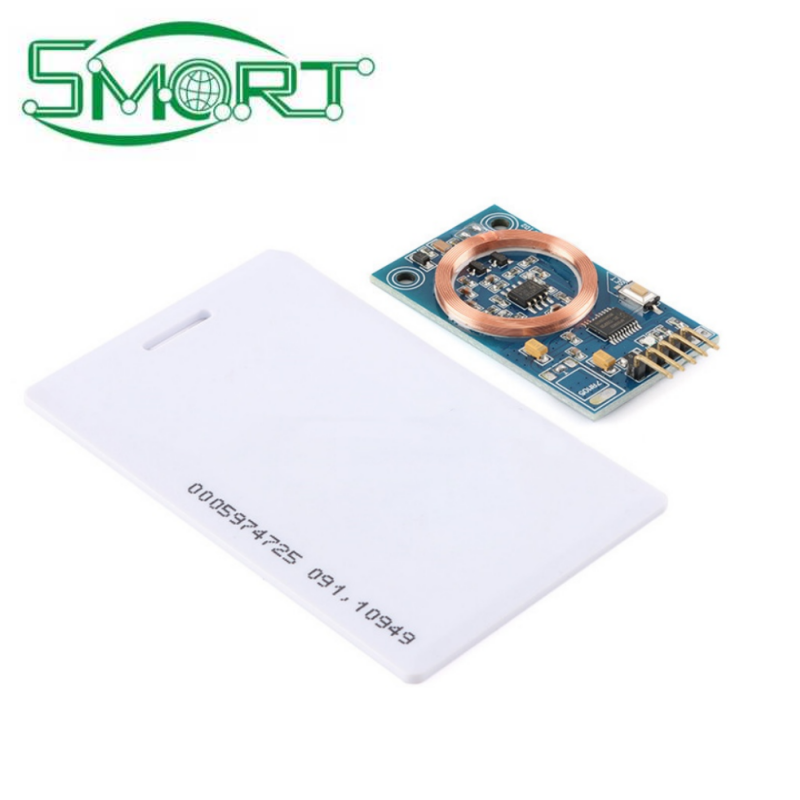

Supports reading ID cards, ID access cards, VIP keychain ID card numbers
Baud rate
Supports 4 optional baud rates, namely 4800, 9600, 57600, and 115200bps
Storage card number
A total of 0-34 card numbers can be stored, with a total of 35 ID cards
Supporting ID card chip model
125K TK4100
Output terminal voltage
around 4.3V (when powered by 5V)

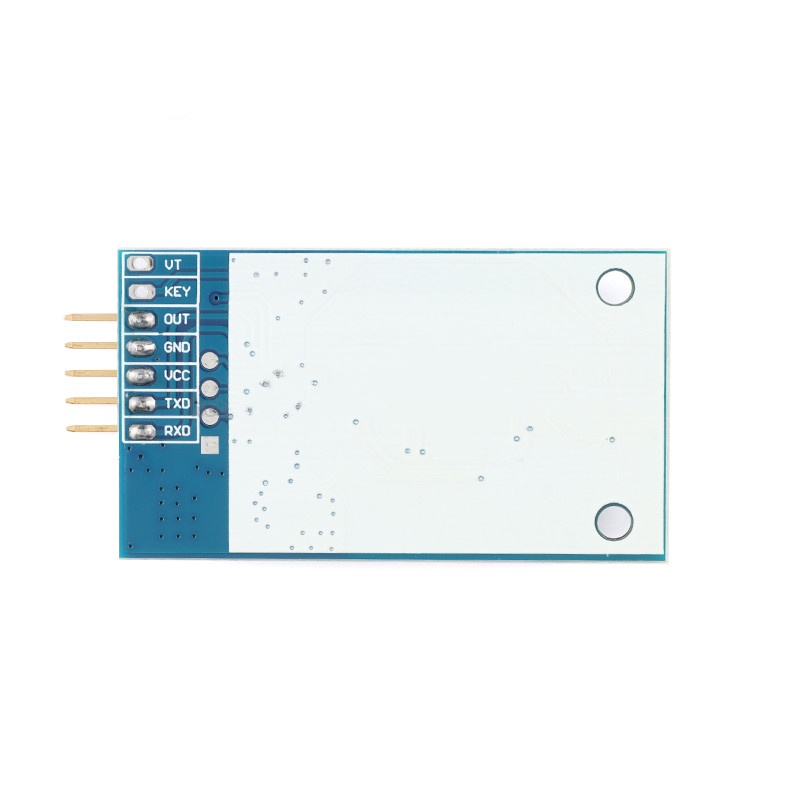

Interface
1 TTL serial port, 1 output port
Working temperature
-20 ℃ to 70 ℃
Working principle
After sensing the ID card, this module actively decodes and outputs a 10 digit card number. If the IO port of a registered card
also outputs a high level
