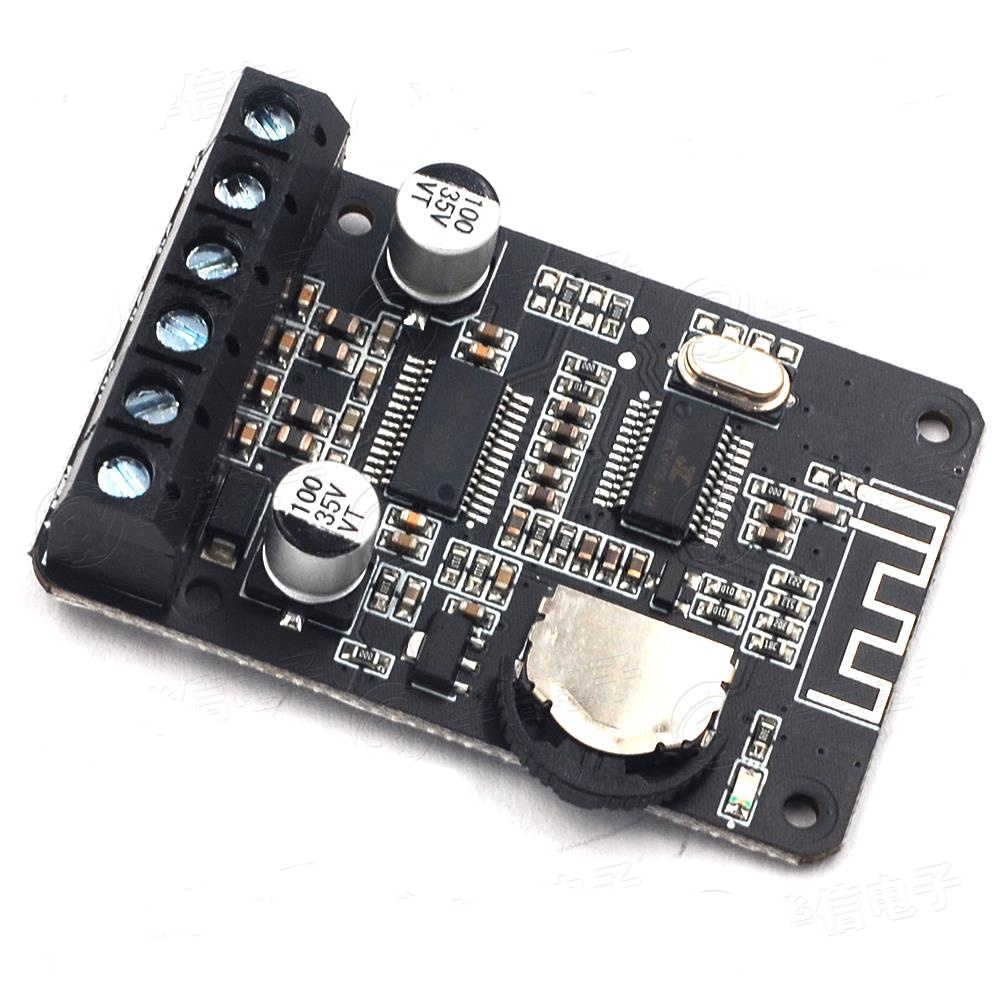

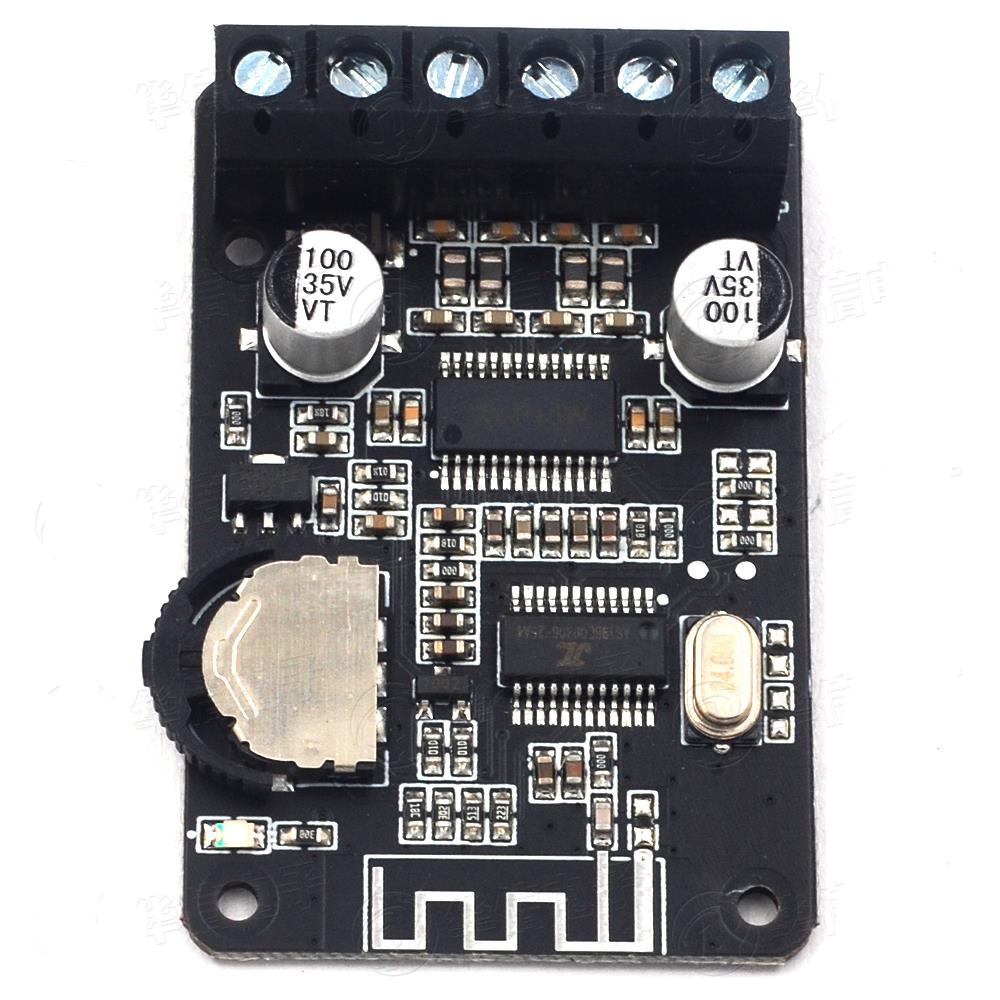

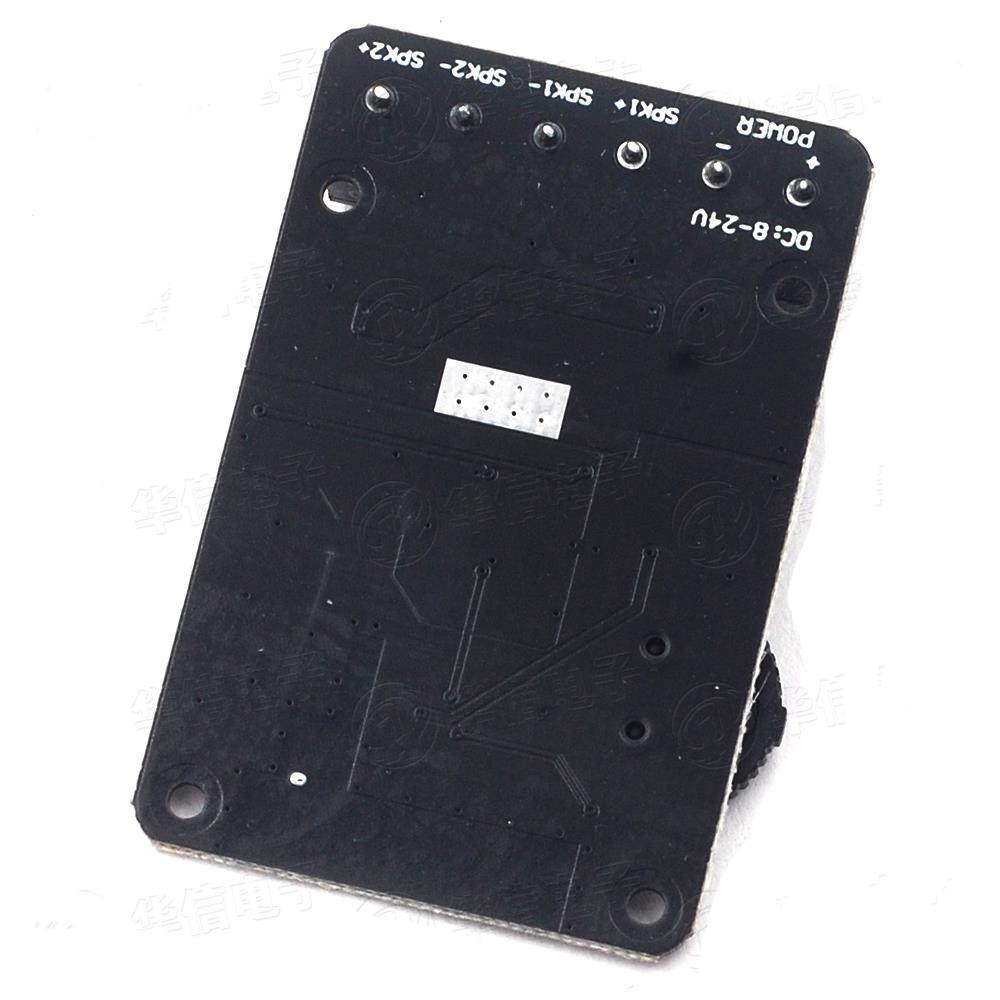

10W/15W/20W stereo Blue tooth amplifier board 12V/24V high-power digital amplifier module XY-P15W

Products > Module > 10W/15W/20W stereo Blue tooth amplifier board 12V/24V high-power digital amplifier module XY-P15W

10W/15W/20W stereo Blue tooth amplifier board 12V/24V high-power digital amplifier module XY-P15W

shared:
Product model
XY-P15W
Working voltage
DC: 8-24V
Ble version
5.0
Transmission distance
15 meters (visible and unobstructed)
Number of channels
Dual channel (stereo)
Output power (@ 1KHz)
16W * 2 @ 12V 4 Ω
10W * 2 @ 12V 8 Ω
15W * 2 @ 16V 8 Ω
20W * 2 @ 20V 8 Ω
30W * 2 @ 24V 8 Ω (requires heat sink)
Adapted speaker (30W~150W)
4 ohms (8-12V power supply)
8 ohms (powered by 8-24V)
16 ohms (powered by 8-24V)
Module protection mechanism
Power reverse connection protection
Short circuit protection
Self recovery overheating protection
Note: To improve module performance, it is recommended to add a heat sink to the power amplifier chip in application scenarios that exceed 20W * 2

Operating instructionsAfter turning on the power, the blue indicator light flashes quickly and enters Bluetooth mode; After broadcasting the "prompt sound", enter pairing mode and wait for pairing; Search for "XY-P15W" (amplifier board device name) through Bluetooth on your mobile phone, click on "XY-P15W" to connect, and after successful connection, play a "prompt sound". The indicator light will stay on to play mobile music, and the indicator light will flash slowly when playing music; After Bluetooth disconnection, the amplifier board is ready for the next pairing and plays a "beep" to enter pairing mode and wait for pairing. Connect as shown in the following figure
