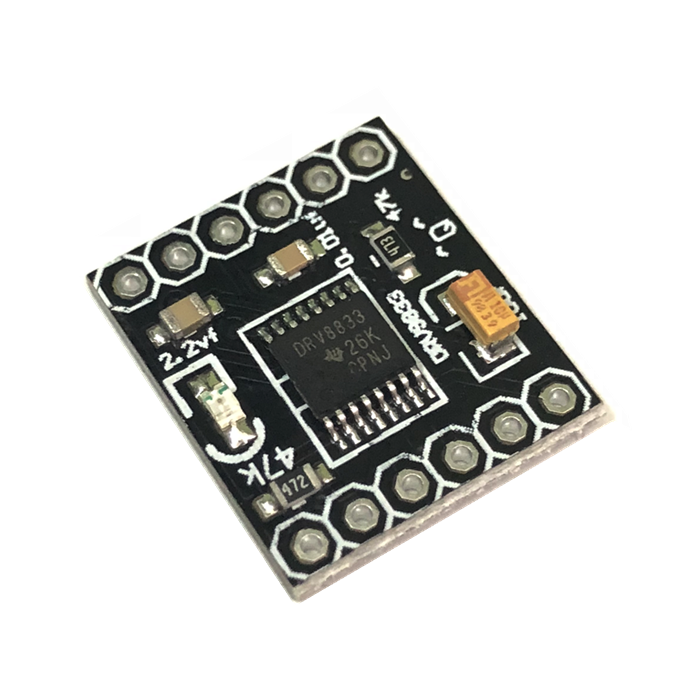

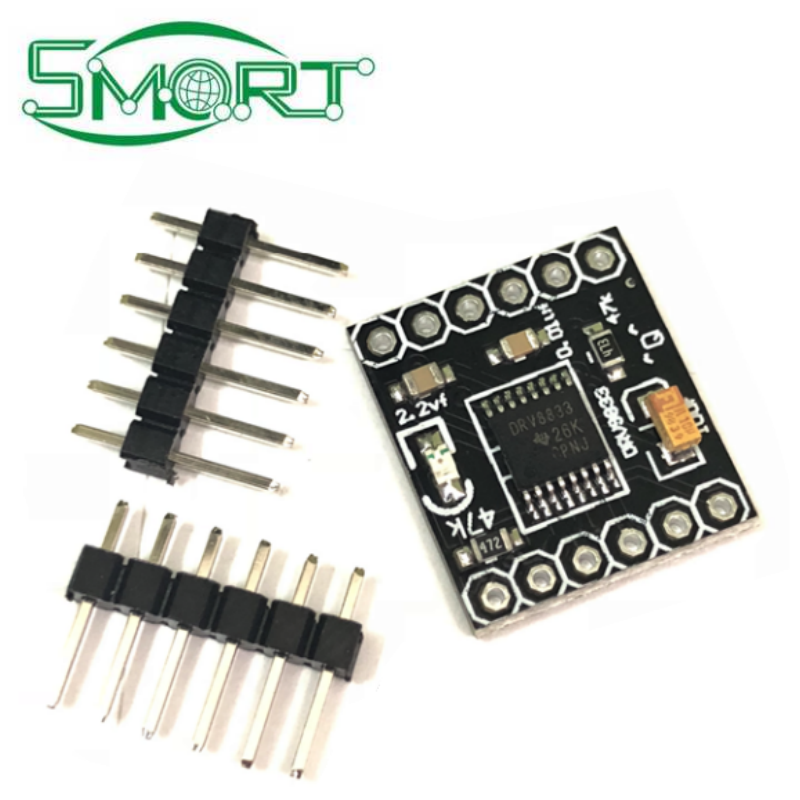

Smart electronics 2 way DC motor drive board DRV8833 motor drive module

shared:
Smart electronics 2 way DC motor drive board DRV8833 motor drive module

Features:
Single H bridge output current: 1.5A, can drive 2 DC geared motors.

Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection.

With low power

sleep mode.
Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors.
Size: 18.5*16mm
Input voltage: 3-10V

Instructions for use:

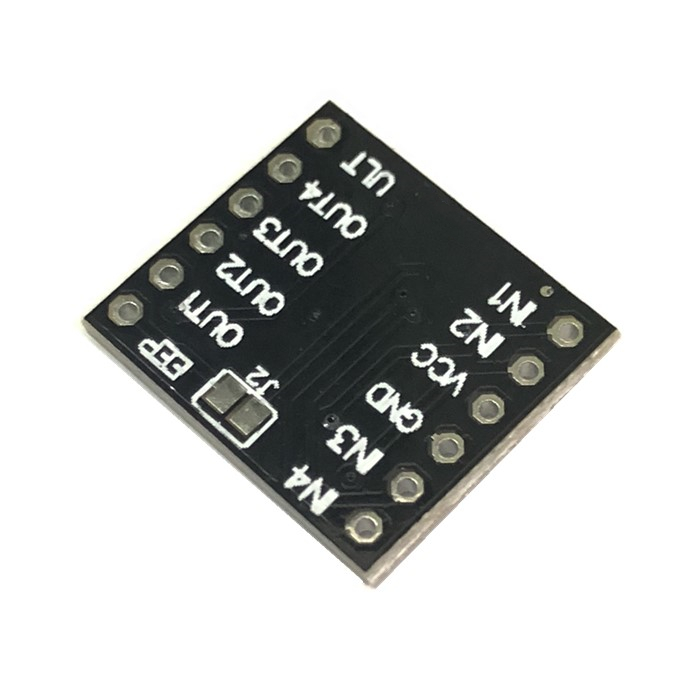

ULT low level is sleep mode (need to disconnect the J2 short solder joint behind the module)
OUT1, 0UT2 is a 1-way H-bridge, and the corresponding control is IN1, IN2.
OUT3, 0UT4 is the second H-bridge, and the corresponding control is IN3, IN4.
EEP is the protection output and is not used by default.
VCC is a voltage input of 3 to 10V.
GND is grounded.
