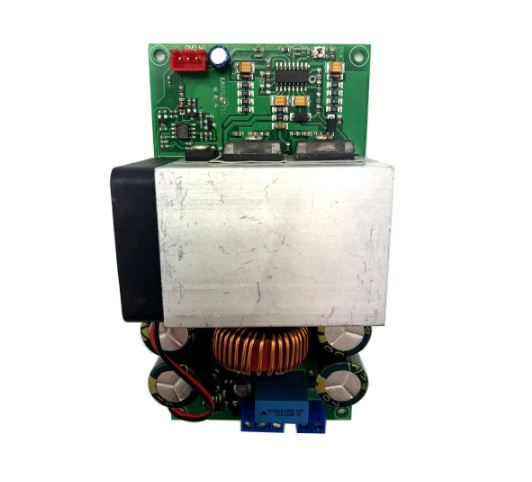

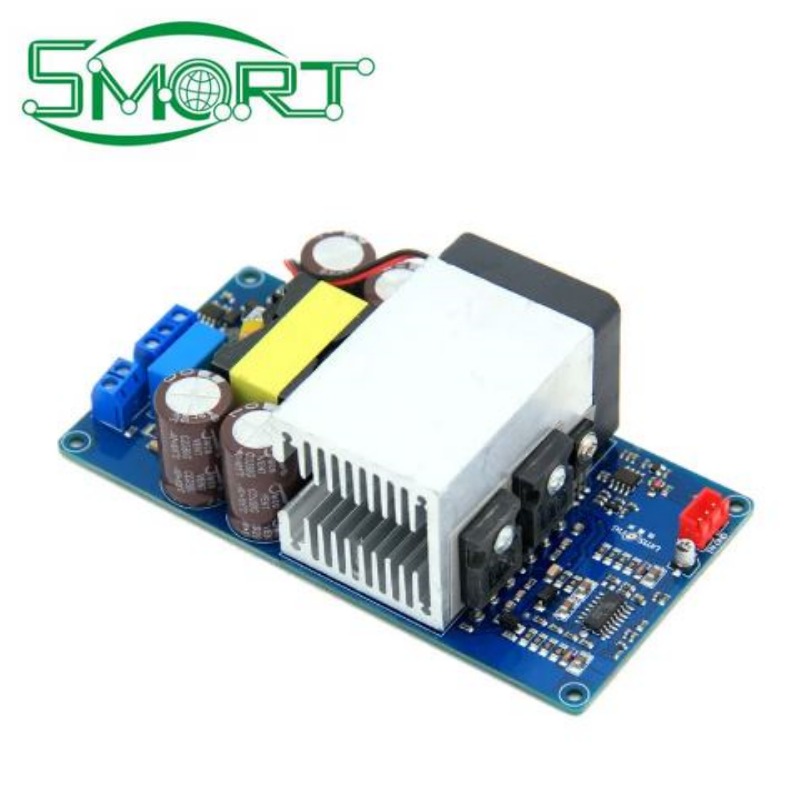

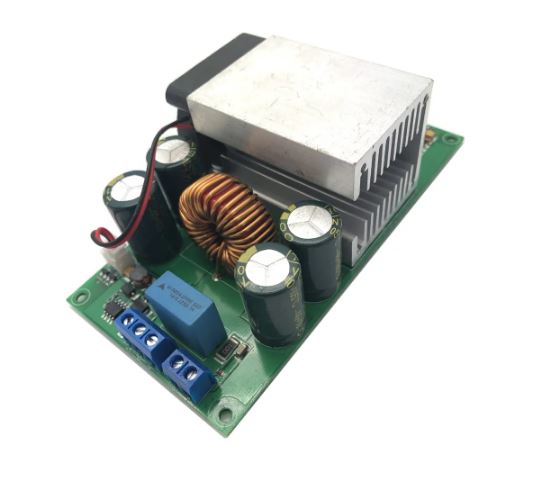

IRFP4227 IRS2092S 1000W Mono Audio Digital Power Amplifier Board

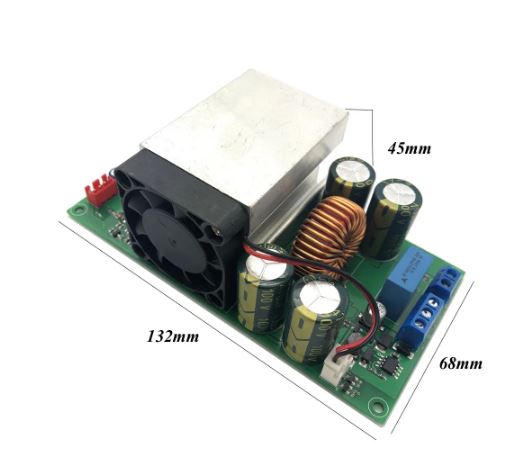

This board is a full frequency pure final stage power amplifier. To be used as a subwoofer, a front low-pass filter is required Parameters: 1. Common voltage: Dual DC power supply ± 58-85V 2. Maximum rated output power: 1000W (± 85V power supply 4 ohms, distortion 1%) 3. Efficiency:>=90% 4. Signal to noise ratio: 90dB 5. Total harmonic distortion: 1000W (± 85 power 4 ohm speaker, distortion<1%) 500W (± 85 power 8 ohm speaker, distortion<1%) 6. Frequency response range: 20Hz-22KHz 7. Speaker: 2-8 Ω. If the power supply of the 2 Ω low impedance speaker is less than ± 65V, please pay special attention 8. Voltage amplification factor: 36 times 9. Input sensitivity 1.5V (RMS) 10. Output short-circuit protection: Yes 11. Output DC bias protection, i.e. horn protection: Yes 12. Over temperature protection: Yes, if the temperature of the radiator FET exceeds 100 ° G, turn off the output! 13. Amplifier board size: 132 * 68 * 45m 14. Weight: 260 grams
This board is a finished mono board. If you need two channels, please buy two.
