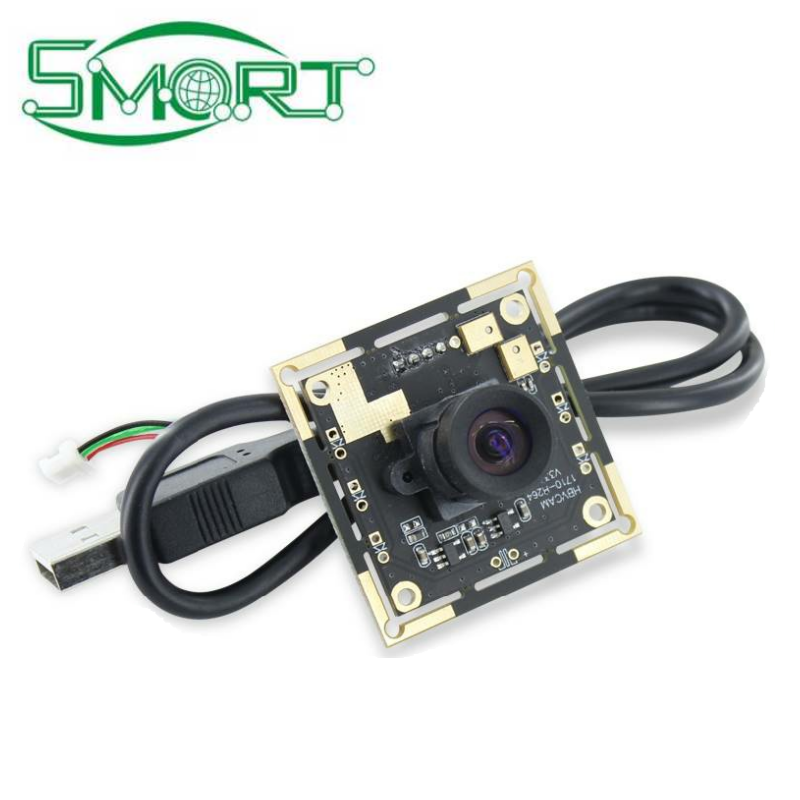

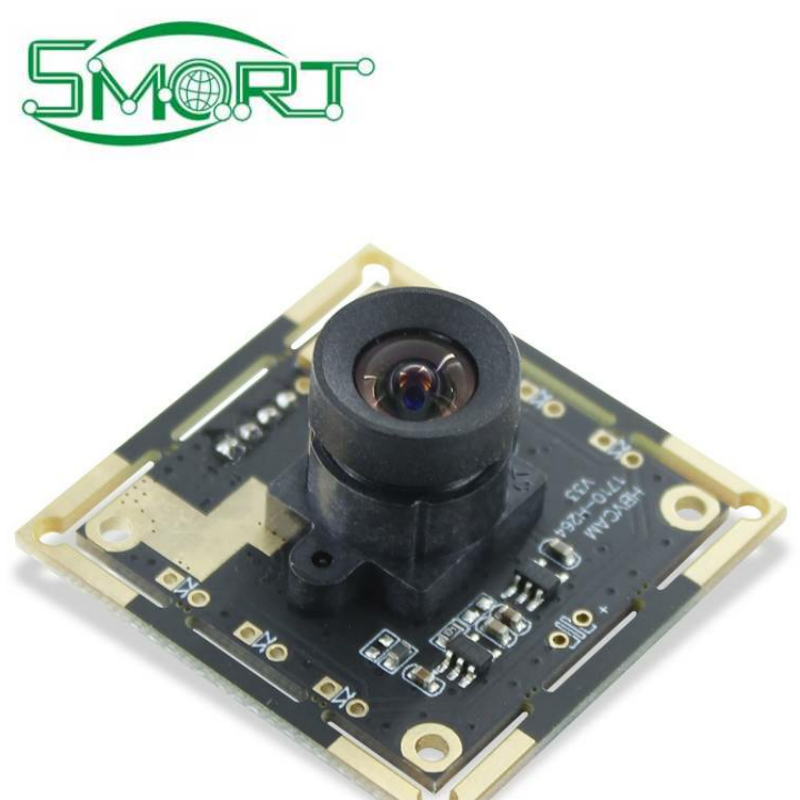

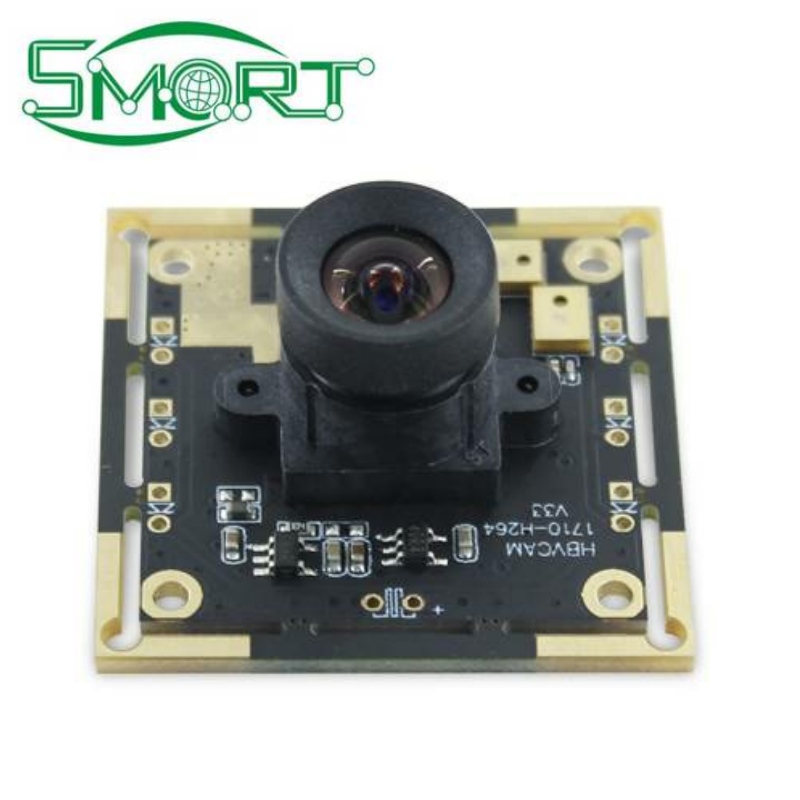

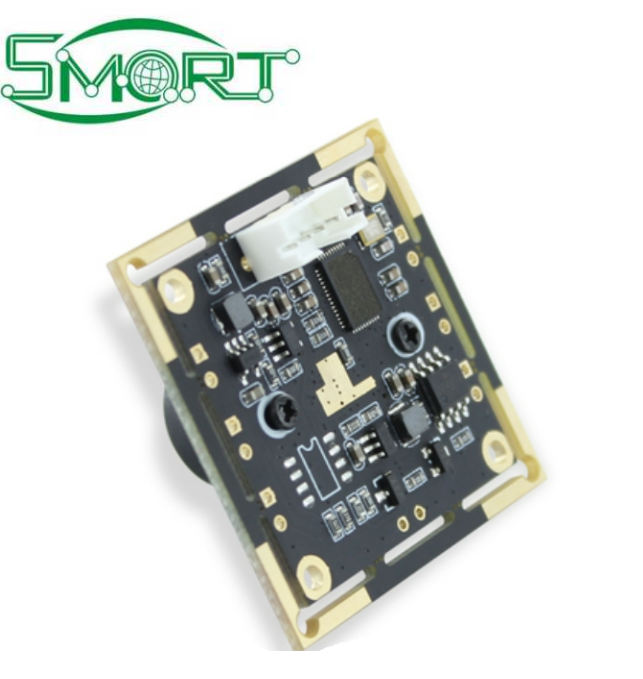

Smart Electronics H264 format 1080P microphone 100 degree distortion free 2 megapixel AR0330 module camera module

H264 format 1080P microphone 100 degree distortion free 2 megapixel AR0330 module camera module
shared：

Features
2 million pixels
Size / Dimension
38mmx38mmx40mm /32mmx32mmx25mm
Description
AR0330 camera module
Product model
HBV-1710-H264 100 °
Photosensitive chip
AR0330 (1/3 ") CMOS
Format
H 264/ MJPG/YUY2
Resolution
1920 *1080P30fps
Focusing method
manual focusing (twist lens)
Output
USB 2.0
Working temperature
-20 ° C~70 ° C
Wire standard configuration
40cm (1m2m3m optional)
Field of view angle/focal length
100 °/3.0mm
Other
With microphone
